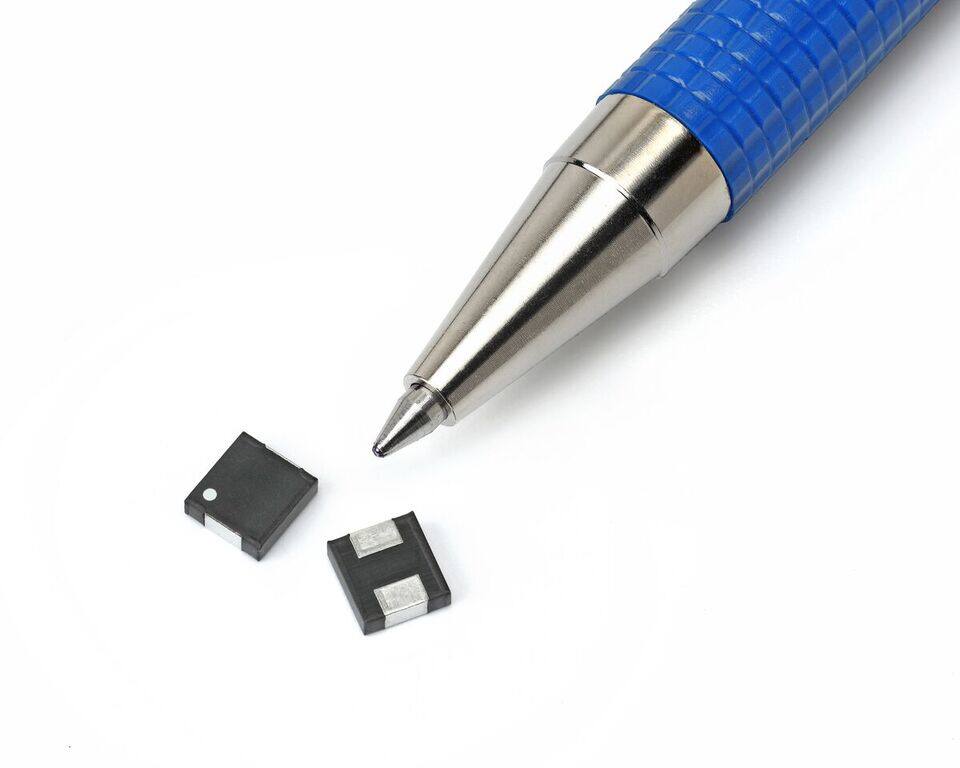

MPI4040R1-6R8-R
RoHS
/
Package 1816
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RoHS Compliant Contains Lead 4540 Composite Metal (Type) Inductor 125C 100kHz 250mOhm 6.8muH
PDF
/
Inventory: 9896
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case 1816
Weight 453.59237mg
Material - Core Composite, Metal
Technical
Tolerance 20%
Termination SMD/SMT
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Composition Wirewound
Shielding Shielded
Depth 4.31mm
Current Rating 1.5A
Case Code (Metric) 4540
Case Code (Imperial) 1816
Inductance 6.8 μH
Test Frequency 100kHz
Max DC Current 1.5A
Current - Saturation 3.2A
DC Resistance (DCR) - Parallel 250mOhm
Dimensions
Height 1.2mm
Height Seated (Max) 1.1938mm
Length 4.445mm
Width 4.064mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Contains Lead
