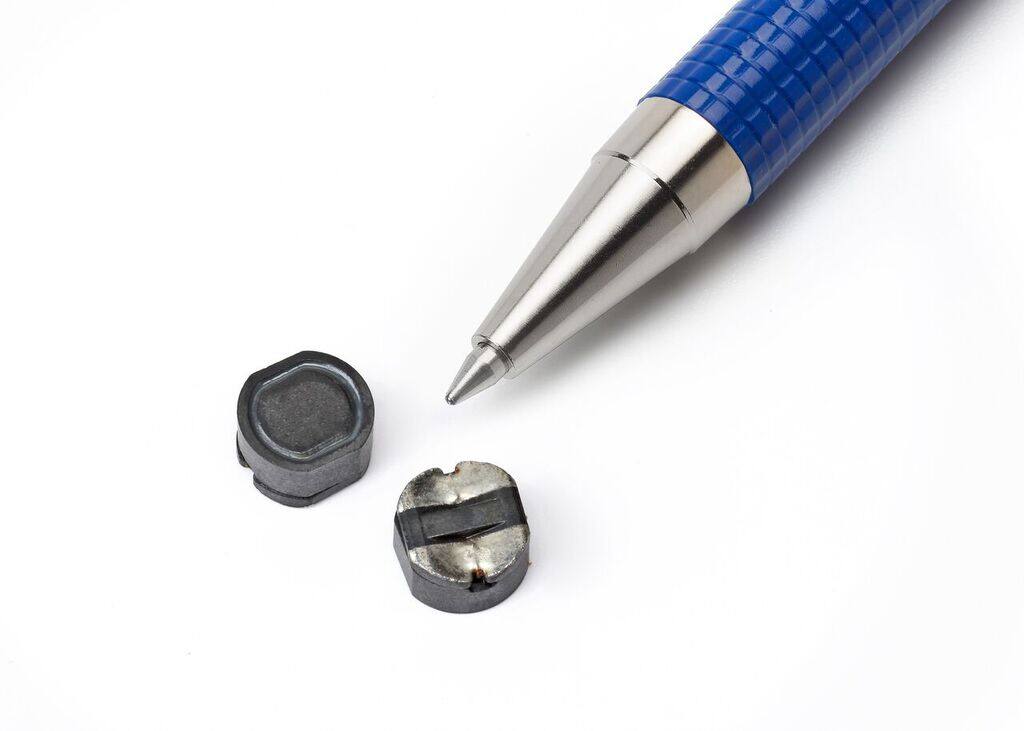

LDS0705-221M-R image
Favorite
LDS0705-221M-R image
Favorite

LDS0705-221M-R

Coiltronics
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description RoHS Compliant Lead Free 2012 Ferrite (Type) Inductor 125C 100kHz 680mOhm 220muH
PDF
/
Inventory: 8400
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Width 7.0104mm
Length 7.7978mm
Height Seated (Max) 5.0038mm
Height 5mm

Technical

RMS Current (Irms) 584mA
DC Current 584mA
Inductance Tolerance 20%
DC Resistance (DCR) - Parallel 680mOhm
Current - Saturation 541mA
Max DC Current 584mA
Test Frequency 100kHz
Inductance 220 μH
Military Standard Not
Current Rating 584mA
Depth 7.2mm
Shielding Shielded
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Termination SMD/SMT
Tolerance 20%
Published 2012

Physical

Material - Core Ferrite
Weight 1.360777g
Number of Pins 2
Package / Case Nonstandard
Mount Surface Mount

Supply Chain

Factory Lead Time 8 Weeks
