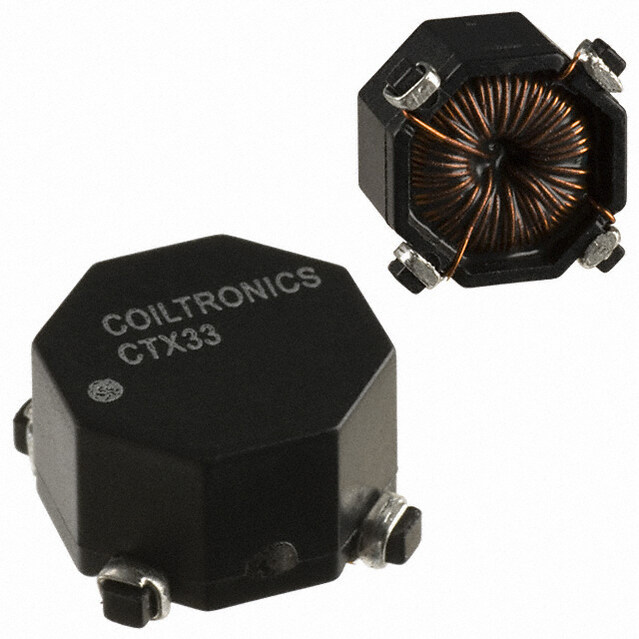

CTX33-3A-R image
Favorite
CTX33-3A-R image
Favorite

CTX33-3A-R

Coiltronics
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description GENERAL PURPOSE INDUCTOR RoHS Compliant Lead Free 2007 (Type) Inductor 85C 100kHz 112mOhm 33.71muH
PDF
/
Inventory: 6663
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC

Dimensions

Width 11.43mm
Length 13.97mm
Height 4.83mm

Technical

DC Resistance (DCR) - Series 449mOhm
Number of Coils 2
Inductance - Series 134.8 μH
Inductance - Parallel 33.71 μH
RMS Current (Irms) 1.93A
DC Resistance (DCR) - Parallel 112mOhm
Inductor Type GENERAL PURPOSE INDUCTOR
Max DC Current 1.61A
Test Frequency 100kHz
Inductance 33 μH
Military Standard Not
Depth 13.97mm
Shielding Unshielded
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Resistance 112mOhm
Termination SMD/SMT
Tolerance 25%
Published 2007
Packaging Cut Tape

Physical

Material - Core Metal
Weight 1.814369g
Number of Pins 4
Package / Case Nonstandard
Mount Surface Mount
