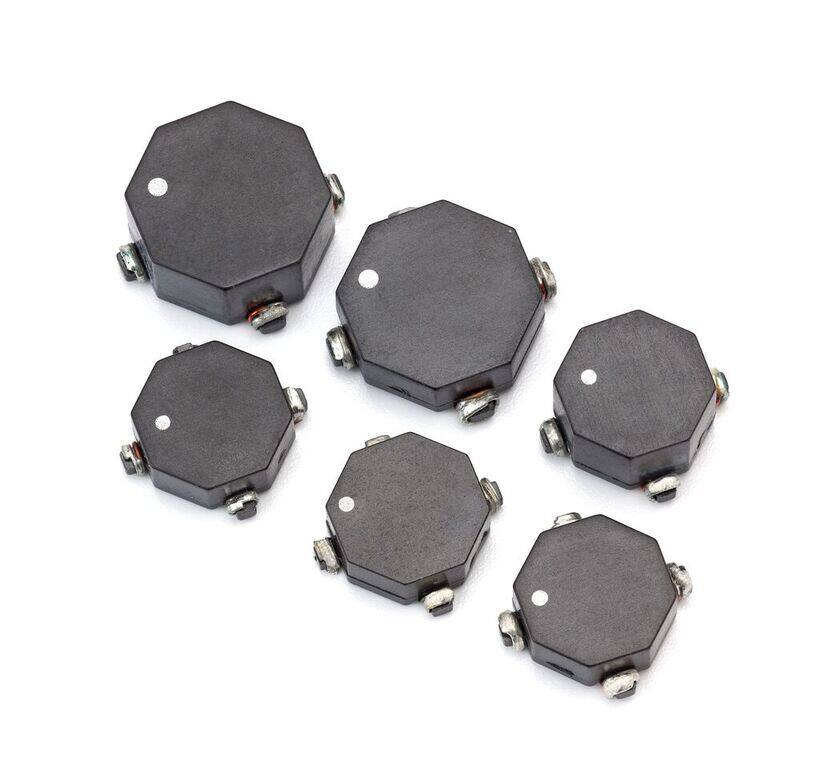

CTX25-2A-R image
Favorite
CTX25-2A-R image
Favorite

CTX25-2A-R

Coiltronics
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description GENERAL PURPOSE INDUCTOR RoHS Compliant Lead Free 2012 (Type) Inductor 85C 100kHz 111mOhm 25.6muH
PDF
/
Inventory: 1806
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown

Dimensions

Width 8.89mm
Length 11.43mm
Height 5.97mm

Technical

DC Resistance (DCR) - Series 443mOhm
Number of Coils 2
Inductance - Series 102.38 μH
Inductance - Parallel 25.6 μH
RMS Current (Irms) 1.89A
Inductance Tolerance 25%
DC Resistance (DCR) - Parallel 111mOhm
Inductor Type GENERAL PURPOSE INDUCTOR
Max DC Current 2.08A
Test Frequency 100kHz
Inductance 25 μH
Military Standard Not
Depth 11.43mm
Shielding Unshielded
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Resistance 111mOhm
Termination SMD/SMT
Tolerance 25%
Published 2012
Packaging Cut Tape

Physical

Material - Core Metal
Weight 1.360777g
Number of Pins 4
Package / Case Nonstandard
Mount Surface Mount

Supply Chain

Factory Lead Time 8 Weeks
