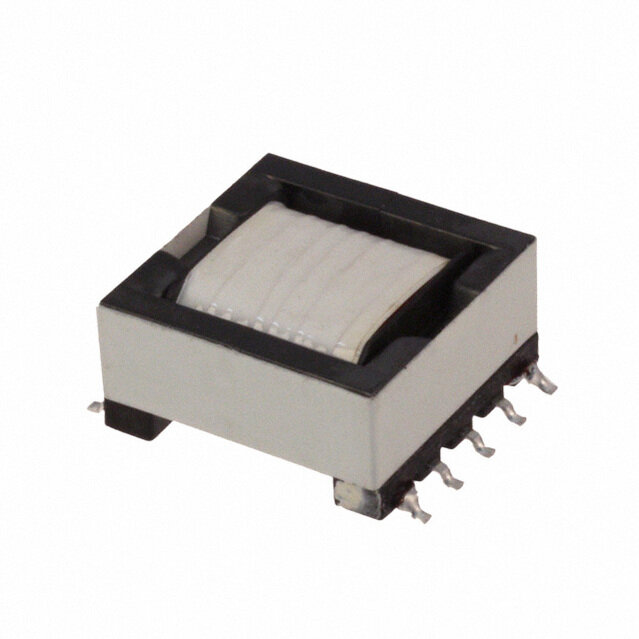

CTX22-15557 image
Favorite
CTX22-15557 image
Favorite

CTX22-15557

Coiltronics
RoHS
/
Package SMD/SMT
Category Inductors, Coils, Chokes / Fixed Inductors
Description RoHS Compliant Pin 2012 Ferrite (Type) Inductor 105C 100kHz 470mOhm 1mH
PDF
/
Inventory: 3801
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Package / Case SMD/SMT
Weight 30.390689g
Material - Core Ferrite

Technical

Published 2012
Termination SMD/SMT
Max Operating Temperature 105°C
Min Operating Temperature -20°C
Shielding Unshielded
Depth 27mm
Current Rating 1.3A
Inductance 1 mH
Test Frequency 100kHz
Max DC Current 1.3A
Lead/Base Style Pin
DC Resistance (DCR) - Parallel 470mOhm

Dimensions

Height 13.1064mm
Height Seated (Max) 13.1064mm
Length 31.8008mm
Width 27.0002mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
