CTX15-1A-R
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
GENERAL PURPOSE INDUCTOR RoHS Compliant Lead Free 2015 (Type) Inductor 85C 100kHz 87mOhm 15.23muH
PDF
/
Inventory: 6996
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Width 8.89mm
Length 11.43mm
Height 4.19mm
Technical
DC Resistance (DCR) - Series 348mOhm
Number of Coils 2
Inductance - Series 60.91 μH

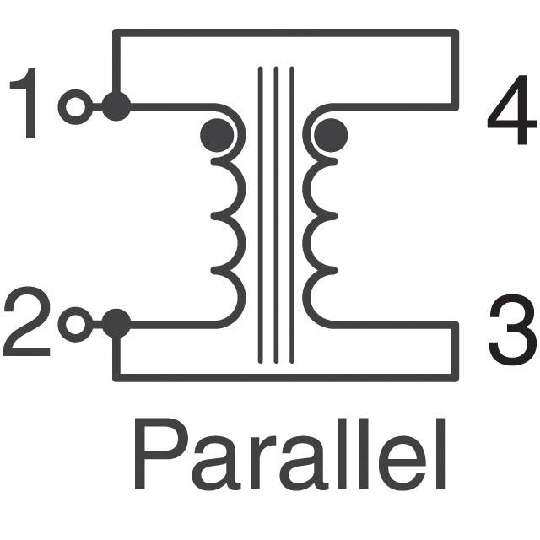

Inductance - Parallel 15.23 μH
RMS Current (Irms) 2.07A
DC Resistance (DCR) - Parallel 87mOhm
Inductor Type GENERAL PURPOSE INDUCTOR
Max DC Current 2.08A
Current 1.03A
Test Frequency 100kHz
Inductance 15 μH
Military Standard Not
Depth 11.43mm
Shielding Unshielded
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Resistance 87mOhm
Termination SMD/SMT
Tolerance 25%
Published 2015
Packaging Cut Tape
Physical
Material - Core Metal
Weight 907.18474mg
Number of Pins 4
Package / Case Nonstandard
Mount Surface Mount
