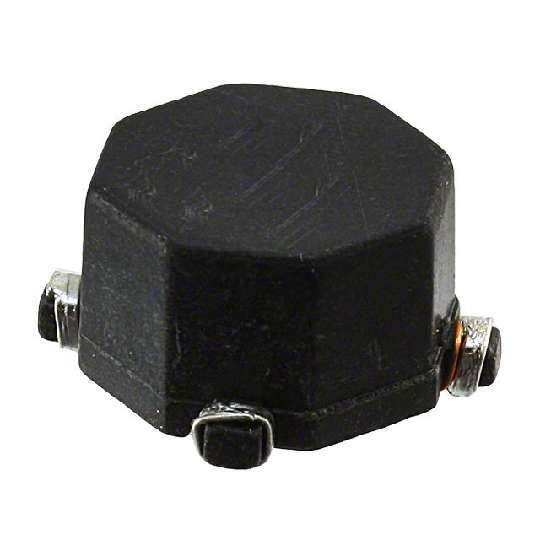

CTX1-2A-R
RoHS
/
Package Metal
Category Inductors, Coils, Chokes / Fixed Inductors
Description
GENERAL PURPOSE INDUCTOR RoHS Compliant Lead Free 2012 (Type) Inductor 85C 100kHz 11.65mOhm 1.26muH
PDF
/
Inventory: 3845
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 11.43mm
Length 11.43mm
Height 5.969mm
Technical
DC Resistance (DCR) - Series 23.3mOhm
Number of Coils 2
Inductance - Series 5.06 μH
Inductance - Parallel 1.26 μH
DC Resistance (DCR) - Parallel 11.65mOhm
Inductor Type GENERAL PURPOSE INDUCTOR
Max DC Current 3.75A
Current 4.11A
Test Frequency 100kHz
Inductance 1 μH
Military Standard Not
Depth 11.43mm
Shielding Unshielded
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Resistance 5.8mOhm
Termination SMD/SMT
Tolerance 25%
Published 2012
Physical
Weight 453.59237mg
Number of Pins 4
Package / Case Metal
Mount Surface Mount
