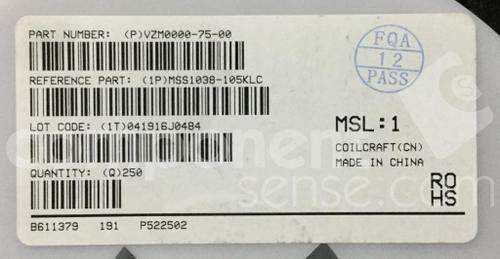

MSS1038-105KLC
RoHS
/
Package /
Category Inductors, Coils, Chokes / Fixed Inductors
Description
1mH 10% 10%
PDF
/
Buying Options
Total Price: USD $2.1
Unit Price: USD $2.1032
≥1 USD $2.1032
≥10 USD $1.353018
≥100 USD $0.825
Inventory: 1120
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Width 10.2mm
Length 10.5mm
Height 4mm
Technical
RMS Current (Irms) 450mA
Inductance-Nom (L) 1000 μH
Inductance Tolerance 10%
DC Resistance (DCR) - Parallel 2.853Ohm
Case/Size Code 4039
Current - Saturation 350mA
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 3MHz
Max DC Current 450mA
Test Frequency 100kHz
Inductance 1 mH
Reference Standard AEC-Q200
Construction Rectangular
Number of Functions 1
Shielding Shielded
Packing Method TR, Embossed Plastic, 7 Inch
HTS Code 8504.50.80.00
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance 10%
Published 2012
Packaging Cut Tape
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 hours ago)
Factory Lead Time 10 Weeks
