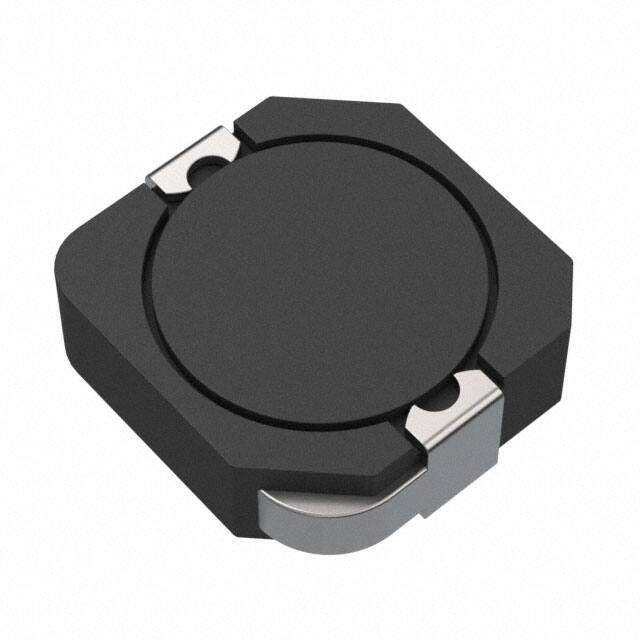

APSC00101140150M00
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
APSC Nonstandard 0.413Lx0.406W 10.50mmx10.30mm 15muH
PDF
/
Buying Options
Total Price: USD $0.81
Unit Price: USD $0.8096
≥1 USD $0.8096
≥10 USD $0.68552
≥100 USD $0.622688
≥500 USD $0.585376
≥1000 USD $0.485848
≥3000 USD $0.448448
Inventory: 1101
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series APSC
Size / Dimension 0.413Lx0.406W 10.50mmx10.30mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Type Wirewound
Shielding Shielded
Number of Functions 1
Inductance 15μH
Test Frequency 0.1MHz
DC Resistance (DCR) 55mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Current - Saturation 3.4A
Rated Current-Max 3.6A
Special Feature STANDARD: TS 16949
Dimensions
Height Seated (Max) 0.157 4.00mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
