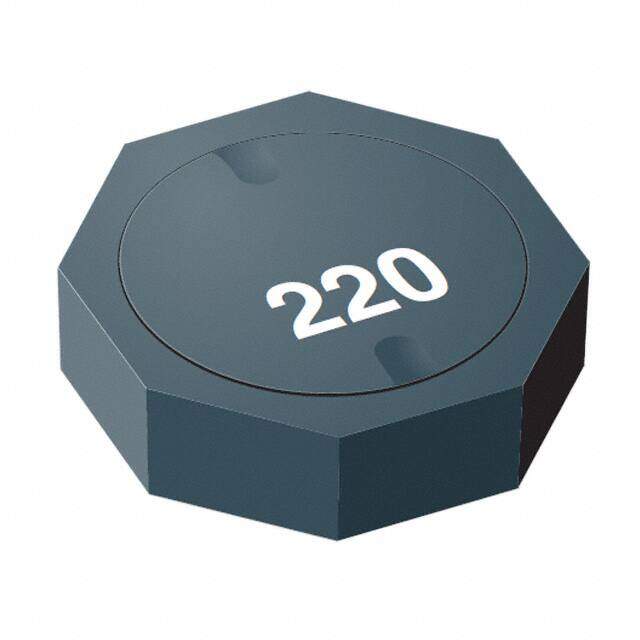

SRU6025A-221Y
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRU6025A Nonstandard 0.256Lx0.244W 6.50mmx6.20mm 220muH
PDF
/
Buying Options
Total Price: USD $0.87
Unit Price: USD $0.8712
≥1 USD $0.8712
≥10 USD $0.73832
≥100 USD $0.670912
≥500 USD $0.630608
≥1000 USD $0.523248
≥3000 USD $0.482979
Inventory: 1151
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2011
Series SRU6025A
Size / Dimension 0.256Lx0.244W 6.50mmx6.20mm
Tolerance ±30%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Shielding Shielded
Depth 6.8mm
Current Rating 420mA
Military Standard Not
Inductance 220μH
Test Frequency 100kHz
DC Resistance (DCR) 1.25Ohm Max
Max DC Current 420mA
Frequency - Self Resonant 4MHz
Q @ Freq 20 @ 796kHz
Current - Saturation 240mA
Inductance Tolerance 30%
RMS Current (Irms) 420mA
Dimensions
Height 2.5mm
Height Seated (Max) 0.110 2.80mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
