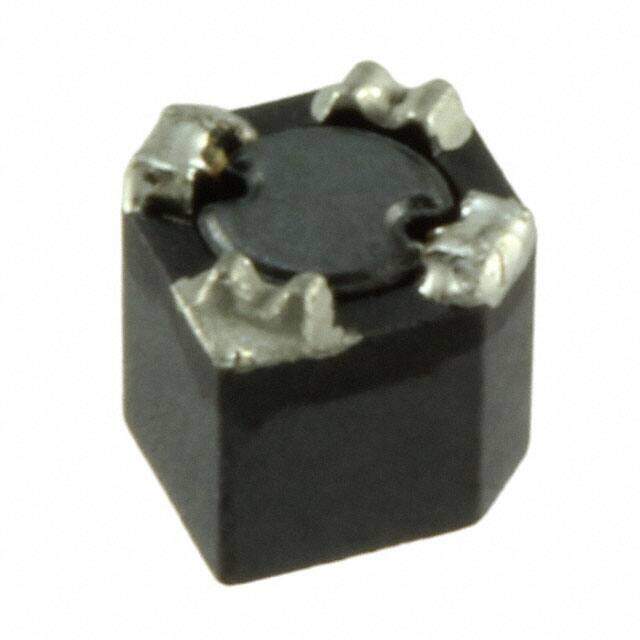

SRU3028A-100Y
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRU3028A Nonstandard 0.138Lx0.130W 3.50mmx3.30mm 10muH
PDF
/
Buying Options
Total Price: USD $0.8
Unit Price: USD $0.8008
≥1 USD $0.8008
≥10 USD $0.68112
≥100 USD $0.619168
≥500 USD $0.582032
≥1000 USD $0.483032
≥3000 USD $0.445878
Inventory: 708
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 3.302mm
Length 3.5052mm
Height Seated (Max) 0.118 3.00mm
Height 2.8mm
Technical
RMS Current (Irms) 720mA
Inductance Tolerance 30%
Current - Saturation 860mA
Inductance Frequency - Test 100kHz
Q @ Freq 20 @ 2.52MHz
Frequency - Self Resonant 35MHz
Max DC Current 720mA
DC Resistance (DCR) 200mOhm Max
Test Frequency 100kHz
Inductance 10μH
Military Standard Not
Base Part Number SRU3028A
Current Rating 720mA
Depth 3.5mm
Shielding Shielded
Current Rating (Amps) 720mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.138Lx0.130W 3.50mmx3.30mm
Series SRU3028A
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks

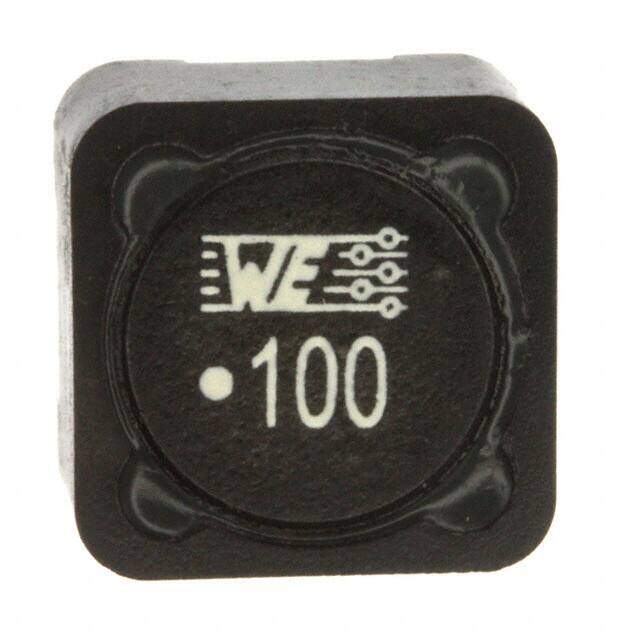

Alternative Model
