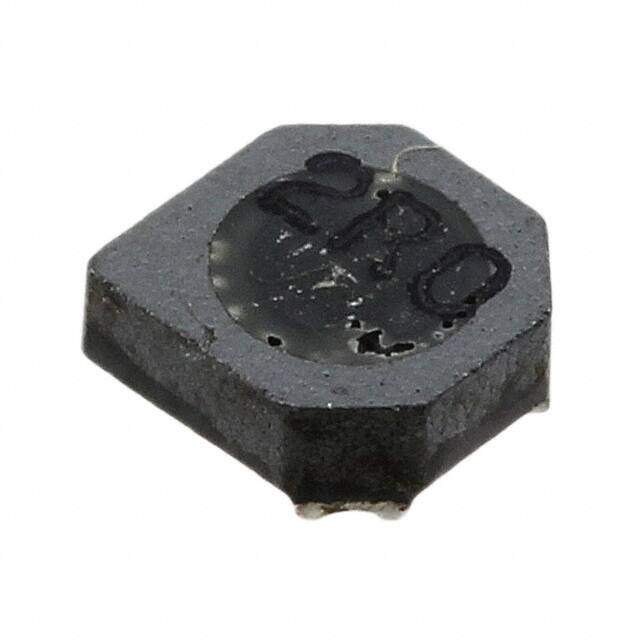

SRU3014-100Y
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRU3014 Nonstandard 0.138Lx0.130W 3.50mmx3.30mm 10muH
PDF
/
Inventory: 6518
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2011
Series SRU3014
Size / Dimension 0.138Lx0.130W 3.50mmx3.30mm
Tolerance ±30%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Packing Method TR
Shielding YES
Number of Functions 2
Current Rating 640mA
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 290mOhm Max
Max DC Current 640mA
Frequency - Self Resonant 40MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL IN-LINE
Q @ Freq 30 @ 2.52MHz
Quality Factor-Min (at L-nom) 30
Current - Saturation 660mA
Case/Size Code 1413
Dimensions
Height 1.6mm
Height Seated (Max) 0.063 1.60mm
Compliance
RoHS Status ROHS3 Compliant
