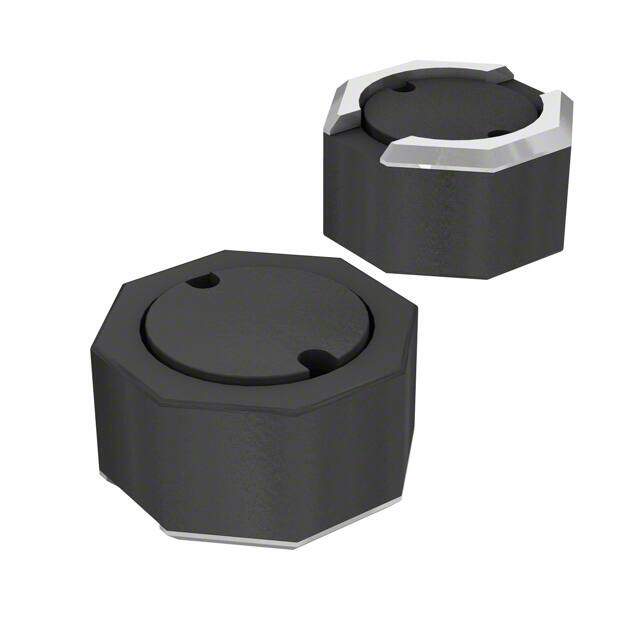

SRU2016-100Y
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRU2016 Nonstandard 0.110Lx0.110W 2.80mmx2.80mm 10muH
PDF
/
Buying Options
Total Price: USD $0.74
Unit Price: USD $0.7392
≥1 USD $0.7392
≥10 USD $0.63624
≥100 USD $0.583264
≥500 USD $0.530112
≥1000 USD $0.471856
≥3000 USD $0.44535
Inventory: 1125
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.071 1.80mm
Height 1.65mm
Technical
DC Current 870mA
Inductance Tolerance 30%
Case/Size Code 1111
Q Factor 9
Current - Saturation 520mA
Quality Factor-Min (at L-nom) 9
Q @ Freq 9 @ 2.52MHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 45MHz
Max DC Current 870mA
Current 410mA
DC Resistance (DCR) 430mOhm Max
Test Frequency 100kHz
Inductance 10μH
Military Standard Not
Current Rating 870mA
Depth 3mm
Number of Functions 1
Shielding YES
Packing Method TR
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Type Wirewound
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±30%
Size / Dimension 0.110Lx0.110W 2.80mmx2.80mm
Series SRU2016
Published 2005
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
