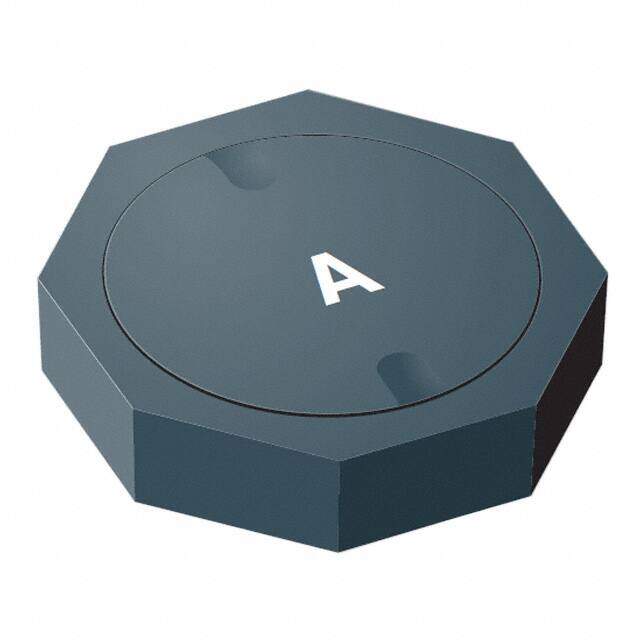

SRU2011-100Y
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRU2011 Nonstandard 0.110Lx0.110W 2.80mmx2.80mm 10muH
PDF
/
Inventory: 2575
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.047 1.20mm
Height 1.2mm
Technical
Case/Size Code 1111
Current - Saturation 400mA
Quality Factor-Min (at L-nom) 10
Q @ Freq 10 @ 2.52MHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 45MHz
Max DC Current 520mA
DC Resistance (DCR) 740mOhm Max
Test Frequency 100kHz
Inductance 10μH
Current Rating 520mA
Number of Functions 1
Shielding YES
Packing Method TR
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±30%
Size / Dimension 0.110Lx0.110W 2.80mmx2.80mm
Series SRU2011
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
