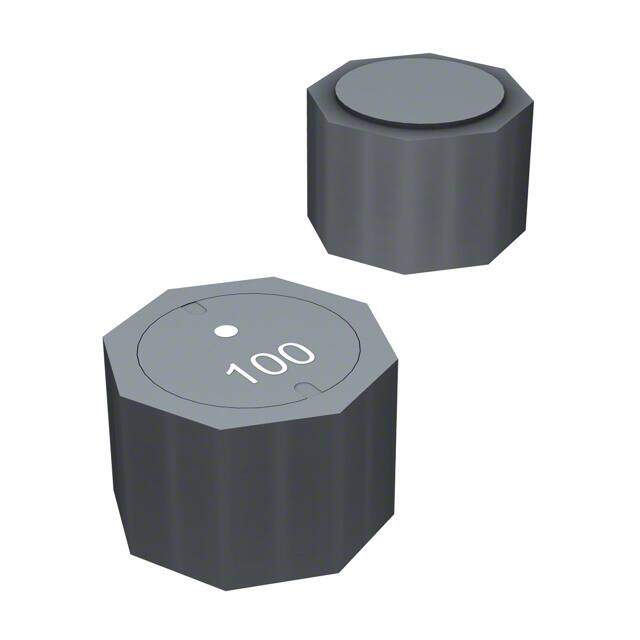

SRU1063-150Y
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRU1063 Nonstandard 0.394Lx0.394W 10.00mmx10.00mm 15muH
PDF
/
Buying Options
Total Price: USD $0.92
Unit Price: USD $0.924
≥1 USD $0.924
≥10 USD $0.78056
≥100 USD $0.709632
≥500 USD $0.666864
≥1000 USD $0.553432
≥3000 USD $0.510822
Inventory: 9419
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.268 6.80mm
Height 6.5mm
Technical
Case/Size Code 3939
Q Factor 12
Current - Saturation 3.4A
Quality Factor-Min (at L-nom) 12
Q @ Freq 12 @ 2.52MHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 14MHz
Max DC Current 3.2A
Current 1.2A
DC Resistance (DCR) 42mOhm Max
Test Frequency 100kHz
Inductance 15μH
Current Rating 3.2A
Number of Functions 1
Shielding YES
Packing Method TR
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±30%
Size / Dimension 0.394Lx0.394W 10.00mmx10.00mm
Series SRU1063
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
