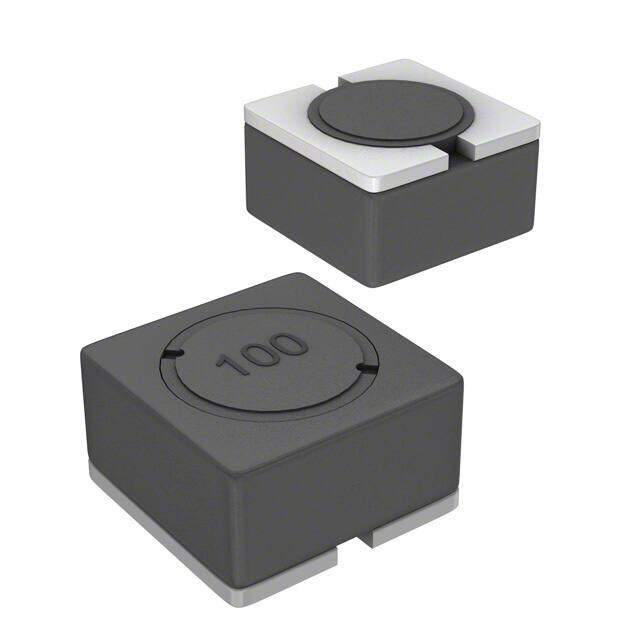

SRR6038-220Y
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRR6038 Nonstandard 0.268Lx0.268W 6.80mmx6.80mm 22muH
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.6864
≥1 USD $0.6864
≥10 USD $0.58784
≥100 USD $0.539264
≥500 USD $0.49016
≥1000 USD $0.436216
≥3000 USD $0.411734
Inventory: 1155
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Material Steel
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2006
Series SRR6038
Size / Dimension 0.268Lx0.268W 6.80mmx6.80mm
Tolerance ±30%
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Resistance 96MOhm
Terminal Finish Silver/Nickel/Tin (Ag/Ni/Sn)
HTS Code 8504.50.80.00
Packing Method TR
Shielding YES
Number of Functions 1
Depth 7mm
Current Rating 1.3A
Frequency 13.9MHz
Military Standard Not
Inductance 22μH
Test Frequency 100kHz
DC Resistance (DCR) 96mOhm Max
Max DC Current 1.3A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 8.8 @ 2.52MHz
Current - Saturation 1.6A
Q Factor 8.9
Case/Size Code 2727
Inductance Tolerance 30%
DC Current 1.3A
RMS Current (Irms) 1.3A
Dimensions
Height 3.8mm
Height Seated (Max) 0.157 4.00mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
