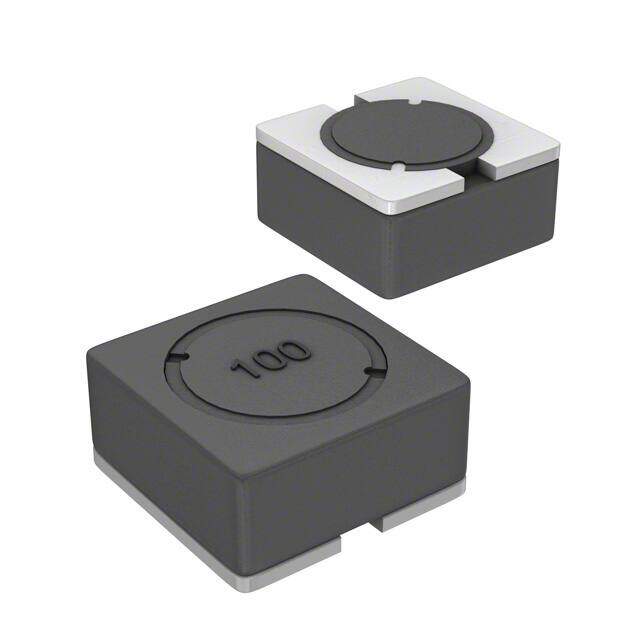

SRR5028-331Y
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRR5028 Nonstandard 0.228Lx0.228W 5.80mmx5.80mm 330muH
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.6864
≥1 USD $0.6864
≥10 USD $0.58784
≥100 USD $0.539264
≥500 USD $0.49016
≥1000 USD $0.436216
Inventory: 1179
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.118 3.00mm
Height 2.8mm
Technical
Case/Size Code 2323
Q Factor 8
Quality Factor-Min (at L-nom) 8
Q @ Freq 8 @ 796kHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 5MHz
Max DC Current 200mA
DC Resistance (DCR) 2Ohm Max
Test Frequency 100kHz
Inductance 330μH
Current Rating 200mA
Number of Functions 1
Shielding YES
Packing Method TR
Terminal Finish Silver/Nickel/Tin (Ag/Ni/Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Tolerance ±30%
Size / Dimension 0.228Lx0.228W 5.80mmx5.80mm
Series SRR5028
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
