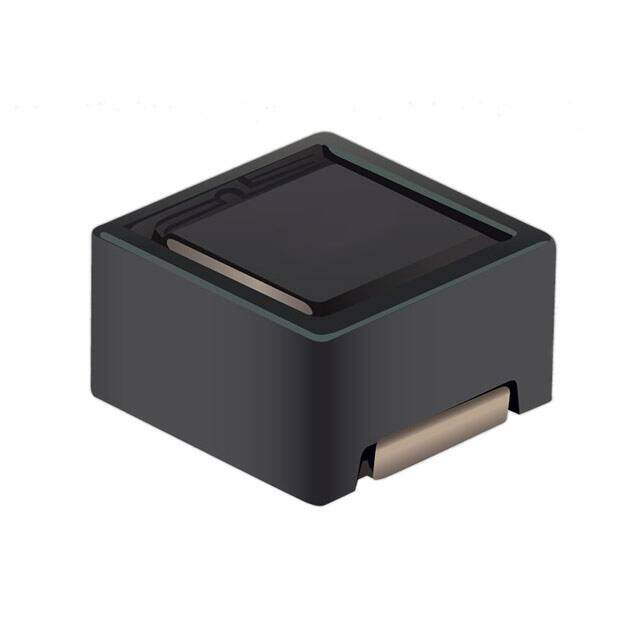

SRR4828A-150M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRR4828A Nonstandard 0.189Lx0.189W 4.80mmx4.80mm 15muH
PDF
/
Buying Options
Total Price: USD $0.76
Unit Price: USD $0.7568
≥1 USD $0.7568
≥10 USD $0.65032
≥100 USD $0.596288
≥500 USD $0.541904
≥1000 USD $0.482328
≥3000 USD $0.455242
Inventory: 638
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~150°C
Packaging Tape & Reel (TR)
Series SRR4828A
Size / Dimension 0.189Lx0.189W 4.80mmx4.80mm
Tolerance ±20%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Current Rating (Amps) 1.8A
Shielding YES
Number of Functions 1
Inductance 15μH
Test Frequency 0.1MHz
DC Resistance (DCR) 145mOhm Max
Frequency - Self Resonant 25MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Current - Saturation 920mA
Rated Current-Max 1.8A
Inductance Tolerance 20%
Dimensions
Height Seated (Max) 0.118 3.00mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
