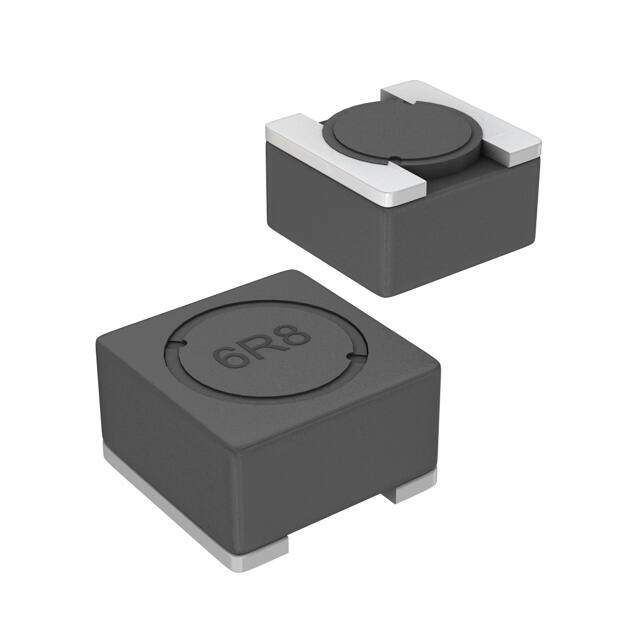

SRR4028-561Y image
Favorite
SRR4028-561Y image
Favorite

SRR4028-561Y

Bourns Inc.
RoHS
RoHS RoHS compliant
Package 1919 (4848 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description SRR4028 1919 (4848Metric) 0.189Lx0.189W 4.80mmx4.80mm 560muH
PDF
/
Buying Options
Total Price: USD $0.49
Unit Price: USD $0.4928
≥1 USD $0.4928
≥10 USD $0.41976
≥100 USD $0.384736
≥500 USD $0.349712
≥1000 USD $0.311256
≥3000 USD $0.293779
Inventory: 26173
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Height Seated (Max) 0.118 3.00mm
Height 2.794mm

Technical

RMS Current (Irms) 220mA
DC Current 220mA
Inductance Tolerance 30%
Q Factor 16.46
Current - Saturation 150mA
Q @ Freq 16.46 @ 796kHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 3MHz
Max DC Current 220mA
DC Resistance (DCR) 3Ohm Max
Test Frequency 100kHz
Inductance 560μH
Case Code (Imperial) 1919
Case Code (Metric) 4848
Military Standard Not
Current Rating 220mA
Depth 5mm
Number of Functions 1
Shielding YES
Packing Method TR
HTS Code 8504.50.80.00
Terminal Finish Silver/Nickel/Tin (Ag/Ni/Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Tolerance ±30%
Size / Dimension 0.189Lx0.189W 4.80mmx4.80mm
Series SRR4028
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape ONE SURFACE
Package / Case 1919 (4848 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
