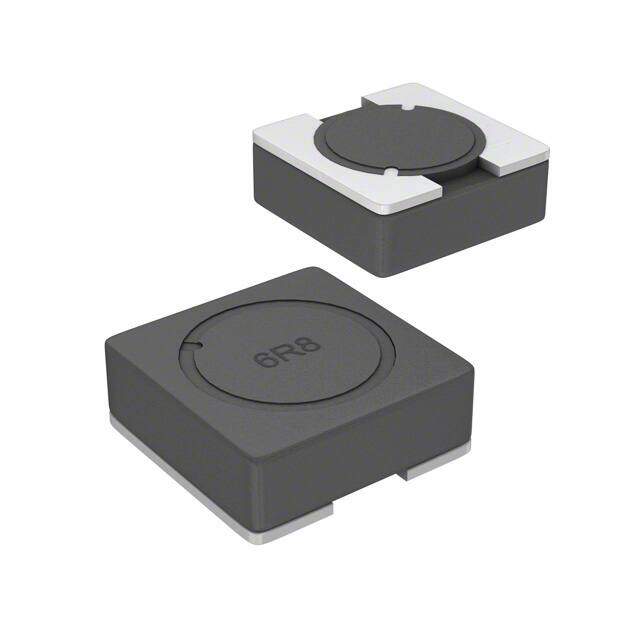

SRR4018-151Y
RoHS
RoHS compliant
RoHS compliantPackage 1919 (4848 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRR4018 1919 (4848Metric) 0.189Lx0.189W 4.80mmx4.80mm 150muH
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.6952
≥1 USD $0.6952
≥10 USD $0.59664
≥100 USD $0.54736
≥500 USD $0.497552
≥1000 USD $0.442816
≥3000 USD $0.417894
Inventory: 92
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1919 (4848 Metric)
Terminal Shape ONE SURFACE
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2008
Series SRR4018
Size / Dimension 0.189Lx0.189W 4.80mmx4.80mm
Tolerance ±30%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
HTS Code 8504.50.80.00
Packing Method TR, Embossed, 7 Inch
Shielding YES
Number of Functions 1
Depth 5mm
Construction Rectangular
Current Rating 280mA
Military Standard Not
Case Code (Metric) 4848
Case Code (Imperial) 1919
Inductance 150μH
Test Frequency 100kHz
DC Resistance (DCR) 2.6Ohm Max
Max DC Current 280mA
Frequency - Self Resonant 10MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 14 @ 796kHz
Current - Saturation 260mA
Q Factor 14
DC Current 280mA
Dimensions
Height 1.8mm
Height Seated (Max) 0.079 2.00mm
Compliance
RoHS Status ROHS3 Compliant
