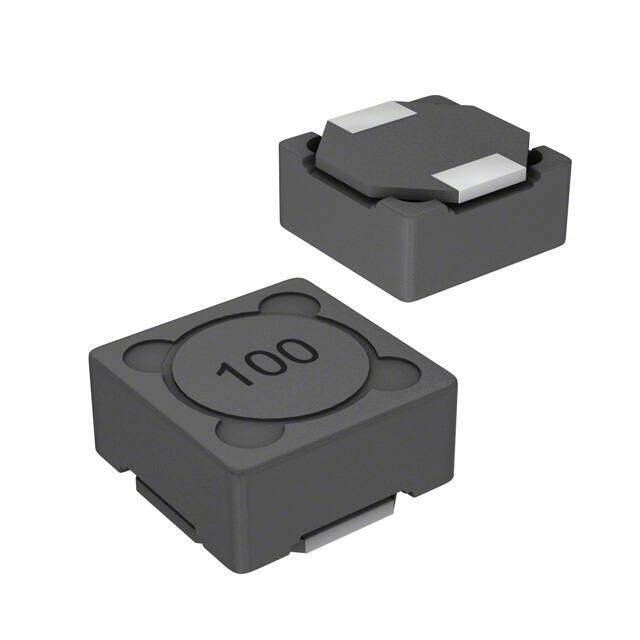

SRR1260-271K
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRR1260 Nonstandard 0.492Lx0.492W 12.50mmx12.50mm 270muH
PDF
/
Buying Options
Total Price: USD $1.04
Unit Price: USD $1.0384
≥1 USD $1.0384
≥10 USD $0.88
≥100 USD $0.799744
≥500 USD $0.751872
≥1000 USD $0.62392
≥3000 USD $0.575942
Inventory: 26399
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height Seated (Max) 0.256 6.50mm
Height 6mm
Technical
RMS Current (Irms) 1.3A
DC Current 1.3A
Inductance Tolerance 10%
Case/Size Code 4949
Q Factor 20
Current - Saturation 1.2A
Q @ Freq 20 @ 796kHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 1.3A
DC Resistance (DCR) 450mOhm Max
Test Frequency 100kHz
Inductance 270μH
Military Standard Not
Frequency 3.6MHz
Current Rating 1.3A
Depth 12.8mm
Number of Functions 1
Shielding YES
Packing Method TR
HTS Code 8504.50.80.00
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Resistance 450MOhm
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±10%
Size / Dimension 0.492Lx0.492W 12.50mmx12.50mm
Series SRR1260
Published 2000
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Material Steel
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
