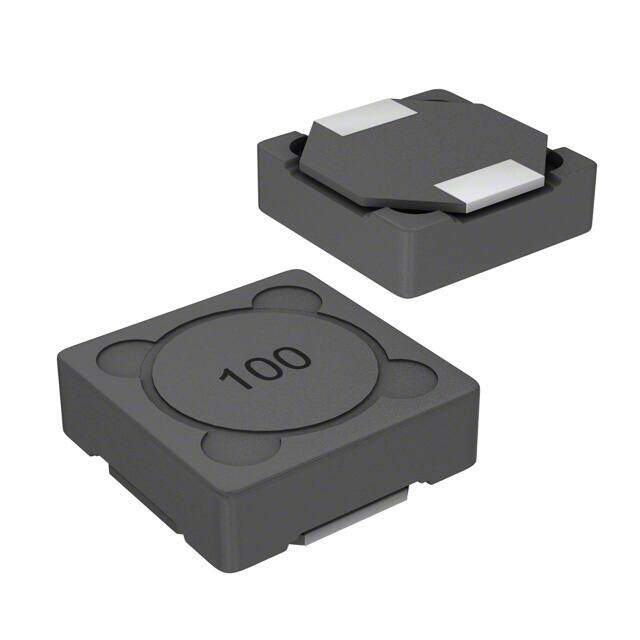

SRR1240-101K
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRR1240 Nonstandard 0.492Lx0.492W 12.50mmx12.50mm 100muH
PDF
/
Buying Options
Total Price: USD $1.04
Unit Price: USD $1.0384
≥1 USD $1.0384
≥10 USD $0.88
≥100 USD $0.799744
≥500 USD $0.751872
≥1000 USD $0.62392
≥3000 USD $0.575942
Inventory: 1118
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 12.5mm
Length 12.5mm
Height Seated (Max) 0.177 4.50mm
Height 4mm
Technical
Inductance Tolerance 10%
Q Factor 14
Current - Saturation 1.2A
Inductance Frequency - Test 100kHz
Q @ Freq 14 @ 796kHz
Frequency - Self Resonant 8MHz
Max DC Current 1.2A
DC Resistance (DCR) 300mOhm Max
Test Frequency 100kHz
Inductance 100μH
Base Part Number SRR1240
Frequency 8MHz
Current Rating 1.25A
Shielding Shielded
Current Rating (Amps) 1.25A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 300MOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.492Lx0.492W 12.50mmx12.50mm
Series SRR1240
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Material Steel
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
