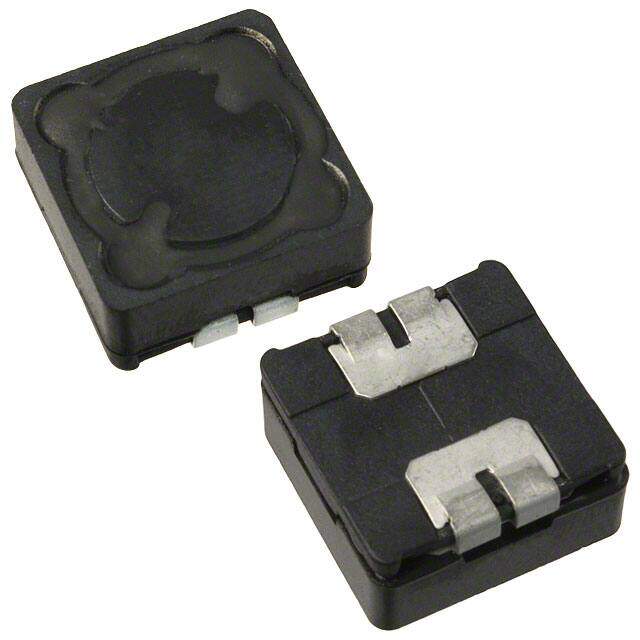

SRR1206-100ML
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRR1206 Nonstandard 0.500Lx0.500W 12.70mmx12.70mm 10muH
PDF
/
Buying Options
Total Price: USD $0.94
Unit Price: USD $0.9416
≥1 USD $0.9416
≥10 USD $0.79464
≥100 USD $0.722656
≥500 USD $0.679184
≥1000 USD $0.56364
≥3000 USD $0.520256
Inventory: 1108
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Number of Pins 2
Material Steel
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2005
Series SRR1206
Size / Dimension 0.500Lx0.500W 12.70mmx12.70mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Resistance 35MOhm
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
HTS Code 8504.50.80.00
Packing Method TR
Shielding YES
Number of Functions 1
Depth 13mm
Current Rating 3.3A
Frequency 18MHz
Military Standard Not
Inductance 10μH
Test Frequency 1kHz
DC Resistance (DCR) 35mOhm Max
Max DC Current 3.3A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 18 @ 2.52MHz
Quality Factor-Min (at L-nom) 18
Current - Saturation 5.7A
Q Factor 18
Case/Size Code 5050
Inductance Tolerance 20%
DC Current 3.3A
RMS Current (Irms) 3.3A
Dimensions
Height 6.5mm
Height Seated (Max) 0.256 6.50mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
