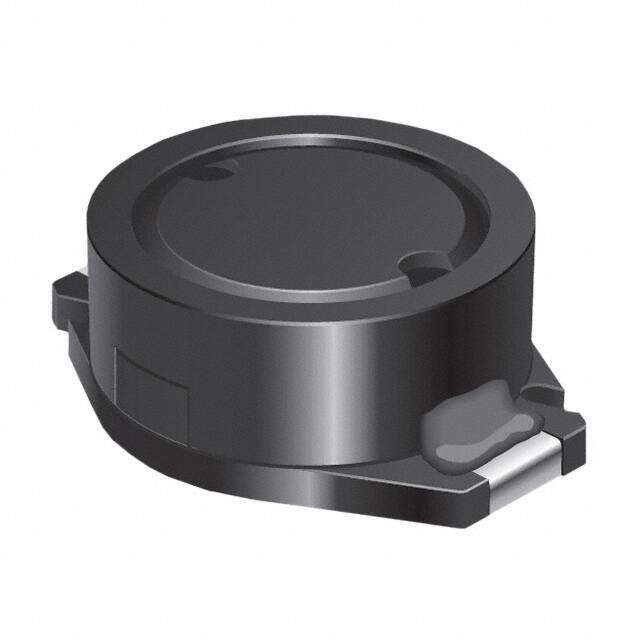

SRR1003-180M

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description SRR1003 Nonstandard 0.500Lx0.406W 12.70mmx10.30mm 18muH
PDF
/
Inventory: 3987
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2011
Series SRR1003
Size / Dimension 0.500Lx0.406W 12.70mmx10.30mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
HTS Code 8504.50.80.00
Packing Method TR
Shielding YES
Number of Functions 1
Depth 10.5mm
Inductance 18μH
Test Frequency 0.01MHz
DC Resistance (DCR) 270mOhm Max
Max DC Current 900mA
Frequency - Self Resonant 14MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 20 @ 2.52MHz
Quality Factor-Min (at L-nom) 20
Inductance Frequency - Test 1kHz
Current - Saturation 2.5A
Case/Size Code 5041
Special Feature Q MEASURED AT 2.52 MHZ

Dimensions

Height 3mm
Height Seated (Max) 0.118 3.00mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
