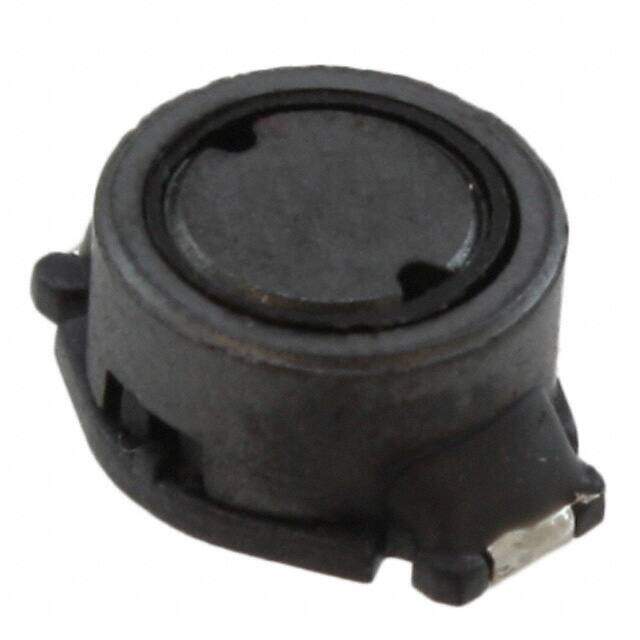

SRR0805-680K image
Favorite
SRR0805-680K image
Favorite

SRR0805-680K

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description SRR0805 Nonstandard 0.413Lx0.315W 10.50mmx8.00mm 68muH
PDF
/
Buying Options
Total Price: USD $0.52
Unit Price: USD $0.5192
≥1 USD $0.5192
≥10 USD $0.43912
≥100 USD $0.399168
≥500 USD $0.375232
≥1000 USD $0.311432
≥3000 USD $0.287443
Inventory: 1039
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Height Seated (Max) 0.185 4.70mm
Height 4.7mm

Technical

RMS Current (Irms) 600mA
Inductance Tolerance 10%
Q Factor 28
Current - Saturation 900mA
Q @ Freq 28 @ 2.52MHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 9MHz
Max DC Current 600mA
DC Resistance (DCR) 440mOhm Max
Test Frequency 1kHz
Inductance 68μH
Case Code (Imperial) 0805
Case Code (Metric) 2012
Current Rating 600mA
Depth 8.2mm
Number of Functions 1
Shielding YES
Packing Method TR, EMBOSSED, 13 INCH
HTS Code 8504.50.80.00
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±10%
Size / Dimension 0.413Lx0.315W 10.50mmx8.00mm
Series SRR0805
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Number of Pins 2
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
