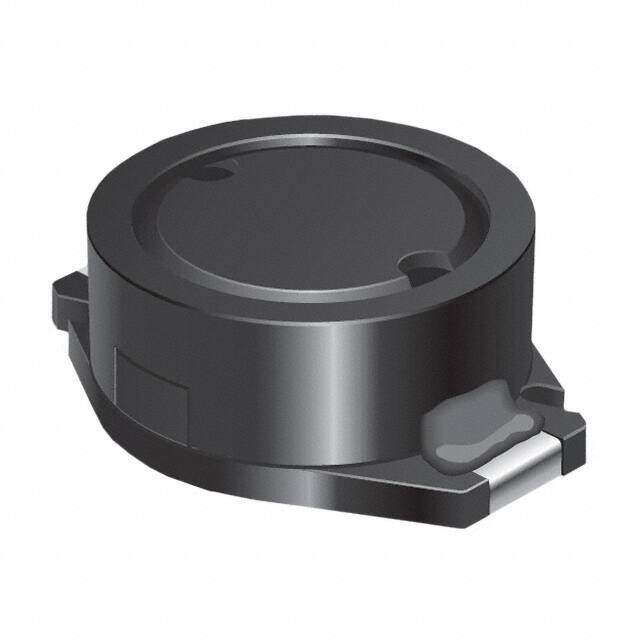

SRR0804-180Y
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRR0804 Nonstandard 0.413Lx0.315W 10.50mmx8.00mm 18muH
PDF
/
Buying Options
Total Price: USD $0.39
Unit Price: USD $0.389892
≥1 USD $0.389892
≥200 USD $0.150891
≥500 USD $0.145588
≥1000 USD $0.142962
Inventory: 3098
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2011
Series SRR0804
Size / Dimension 0.413Lx0.315W 10.50mmx8.00mm
Tolerance ±15%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
HTS Code 8504.50.80.00
Packing Method TR
Shielding YES
Number of Functions 1
Depth 8.2mm
Current Rating 900mA
Inductance 18μH
Test Frequency 1kHz
DC Resistance (DCR) 190mOhm Max
Max DC Current 900mA
Frequency - Self Resonant 23MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 35 @ 2.52MHz
Quality Factor-Min (at L-nom) 35
Current - Saturation 1.5A
Case/Size Code 4132
Special Feature Q MEASURED AT 2.52 MHZ
Dimensions
Height 3.8mm
Height Seated (Max) 0.150 3.80mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
