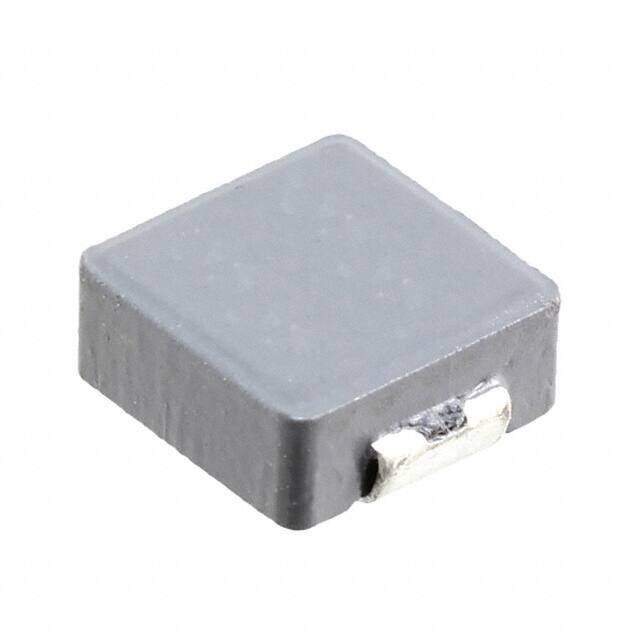

SRP7028A-R33M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRP7028A Nonstandard 0.287Lx0.260W 7.30mmx6.60mm 330nH
PDF
/
Buying Options
Total Price: USD $1.14
Unit Price: USD $1.1352
≥1 USD $1.1352
≥10 USD $0.96096
≥100 USD $0.874016
≥500 USD $0.821392
≥1000 USD $0.681648
≥3000 USD $0.6292
Inventory: 1147
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 0.118 3.00mm
Height 2.8mm
Technical
RMS Current (Irms) 20A
DC Current 20A
Inductance Tolerance 20%
Case/Size Code 2926
Q Factor 10
Current - Saturation 32A
Quality Factor-Min (at L-nom) 10
Q @ Freq 10 @ 100kHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 140MHz
Max DC Current 20A
DC Resistance (DCR) 3.9mOhm Max
Test Frequency 100kHz
Inductance 330nH
Military Standard Not
Current Rating 20A
Depth 6.6mm
Number of Functions 1
Shielding YES
Packing Method TR, EMBOSSED, 13 INCH
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.287Lx0.260W 7.30mmx6.60mm
Series SRP7028A
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Carbonyl Powder
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
Alternative Model
