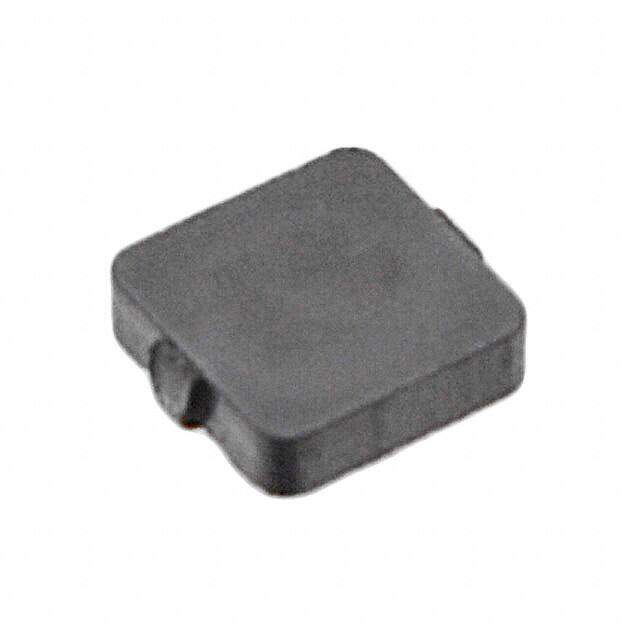

SRP4012-2R2M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED INDUCTOR 2.2UH SMD
PDF
/
Inventory: 3341
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Iron
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2015
Series SRP4012
Size / Dimension 0.185Lx0.157W 4.70mmx4.00mm
Tolerance ±20%
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Composition Wirewound
Shielding Shielded
Base Part Number SRP4012
Inductance 2.2μH
Test Frequency 100kHz
Inductance Frequency - Test 100kHz
Dimensions
Height Seated (Max) 0.047 1.20mm
Length 4.699mm
Width 3.9878mm
Compliance
RoHS Status ROHS3 Compliant
