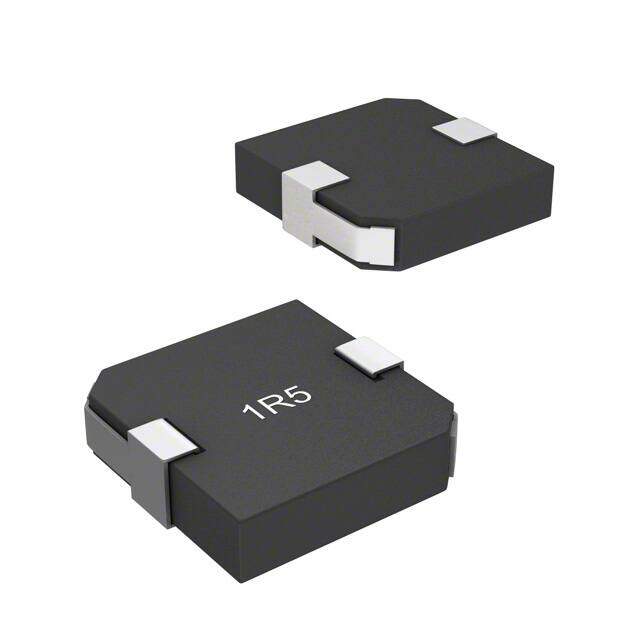

SRP1235-1R8M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRP1235 Nonstandard 0.547Lx0.531W 13.90mmx13.50mm 1.8muH
PDF
/
Inventory: 1118
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Number of Pins 2
Material - Core Iron
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -55°C~150°C
Packaging Tape & Reel (TR)
Published 2010
Series SRP1235
Size / Dimension 0.547Lx0.531W 13.90mmx13.50mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Packing Method TR, 13 Inch
Shielding YES
Number of Functions 1
Depth 13.5mm
Construction Chip
Current Rating 16.5A
Military Standard Not
Inductance 1.8μH
Test Frequency 100kHz
DC Resistance (DCR) 7mOhm Max
Max DC Current 16.5A
Frequency - Self Resonant 32MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 24A
Case/Size Code 5050
DC Current 16.5A
Dimensions
Height 3.7mm
Height Seated (Max) 0.146 3.70mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
