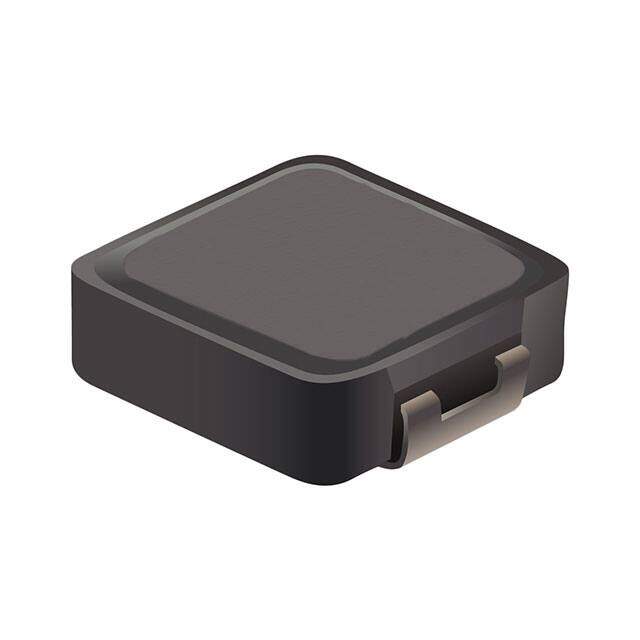

SRP1038C-8R2M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 8.2UH 9A 22.5 MOHM SMD
PDF
/
Buying Options
Total Price: USD $1.14
Unit Price: USD $1.1352
≥1 USD $1.1352
≥10 USD $0.96096
≥100 USD $0.874016
≥500 USD $0.821392
≥1000 USD $0.681648
≥3000 USD $0.6292
Inventory: 492
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Metal
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series SRP1038C
Size / Dimension 0.433Lx0.394W 11.00mmx10.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 9A
Shielding Shielded
Inductance 8.2μH
DC Resistance (DCR) 22.5mOhm Max
Frequency - Self Resonant 11MHz
Q @ Freq 15 @ 100kHz
Inductance Frequency - Test 100kHz
Current - Saturation 13.5A
Dimensions
Height Seated (Max) 0.157 4.00mm
Compliance
RoHS Status ROHS3 Compliant
