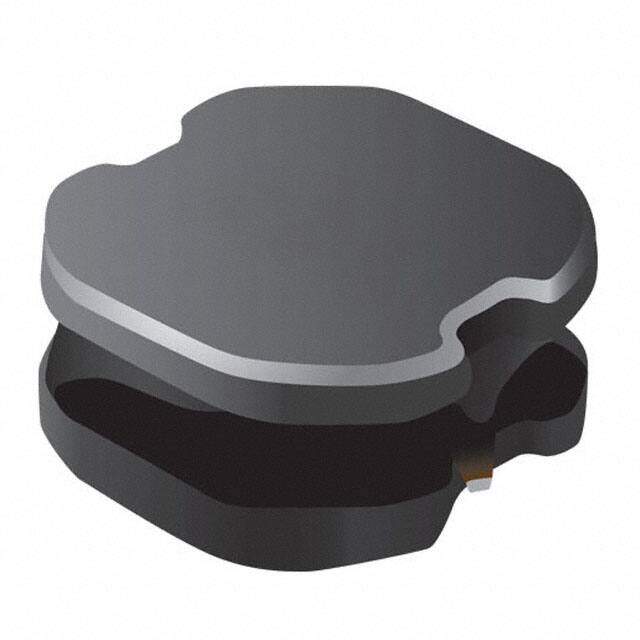

SRN8040-100M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRN8040 Nonstandard 0.315Lx0.315W 8.00mmx8.00mm 10muH
PDF
/
Buying Options
Total Price: USD $0.57
Unit Price: USD $0.572
≥1 USD $0.572
≥10 USD $0.4928
≥100 USD $0.451616
≥500 USD $0.410432
≥1000 USD $0.365288
≥3000 USD $0.344749
Inventory: 6540
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Number of Pins 2
Material Steel
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2006
Series SRN8040
Size / Dimension 0.315Lx0.315W 8.00mmx8.00mm
Tolerance ±20%
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
HTS Code 8504.50.80.00
Packing Method TR
Shielding YES
Number of Functions 1
Depth 8.3mm
Current Rating 3.1A
Military Standard Not
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 50mOhm Max
Max DC Current 3.1A
Frequency - Self Resonant 18MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 20 @ 2.52MHz
Current - Saturation 3.4A
Inductance Tolerance 20%
DC Current 3.1A
RMS Current (Irms) 3.1A
Dimensions
Height 4mm
Height Seated (Max) 0.157 4.00mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
