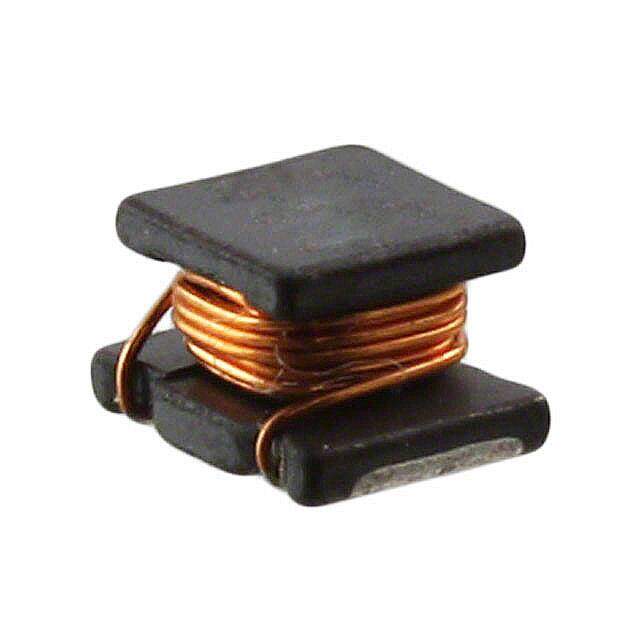

SRN6028-R90Y image
Favorite
SRN6028-R90Y image
Favorite

SRN6028-R90Y

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description SRN6028 Nonstandard 0.236Lx0.236W 6.00mmx6.00mm 900nH
PDF
/
Buying Options
Total Price: USD $0.43
Unit Price: USD $0.429946
≥1 USD $0.429946
≥10 USD $0.405607
≥100 USD $0.382653
≥500 USD $0.360999
≥1000 USD $0.340563
Inventory: 3690
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Weight 390.00439mg
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2014
Series SRN6028
Size / Dimension 0.236Lx0.236W 6.00mmx6.00mm
Tolerance ±30%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
HTS Code 8504.50.80.00
Packing Method TR, Embossed , 13 Inch
Shielding Semi-Shielded
Depth 6.2mm
Construction Rectangular
Current Rating 4.6A
Military Standard Not
Inductance 900nH
Test Frequency 100kHz
DC Resistance (DCR) 17mOhm Max
Max DC Current 4.6A
Frequency - Self Resonant 105MHz
Q @ Freq 12 @ 7.96MHz
Quality Factor-Min (at L-nom) 12
Current - Saturation 6.7A
Q Factor 12
Case/Size Code 2424
Inductance Tolerance 30%
DC Current 4.6A
RMS Current (Irms) 4.6A

Dimensions

Height 2.8mm
Height Seated (Max) 0.110 2.80mm

Compliance

REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
