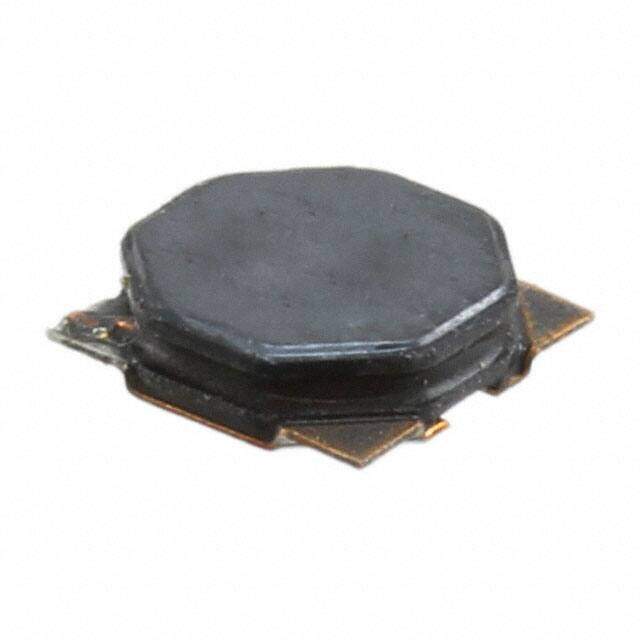

SRN4012-4R7M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRN4012 Nonstandard 0.157Lx0.157W 4.00mmx4.00mm 4.7muH
PDF
/
Inventory: 4302
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2014
Series SRN4012
Size / Dimension 0.157Lx0.157W 4.00mmx4.00mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Packing Method TR, 13 Inch
Shielding Semi-Shielded
Construction Epoxy Resin
Current Rating 1.5A
Inductance 4.7μH
Test Frequency 100kHz
DC Resistance (DCR) 114mOhm Max
Max DC Current 1.5A
Current - Saturation 1.2A
Case/Size Code 1616
Dimensions
Height Seated (Max) 0.047 1.20mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant

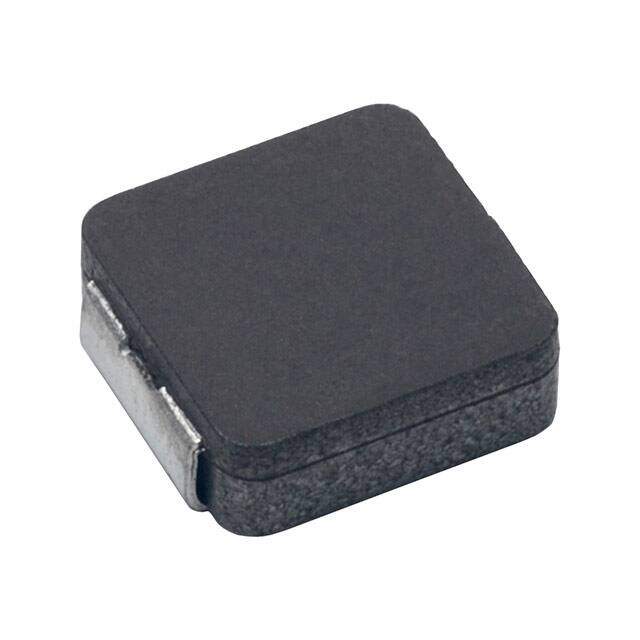

Alternative Model
