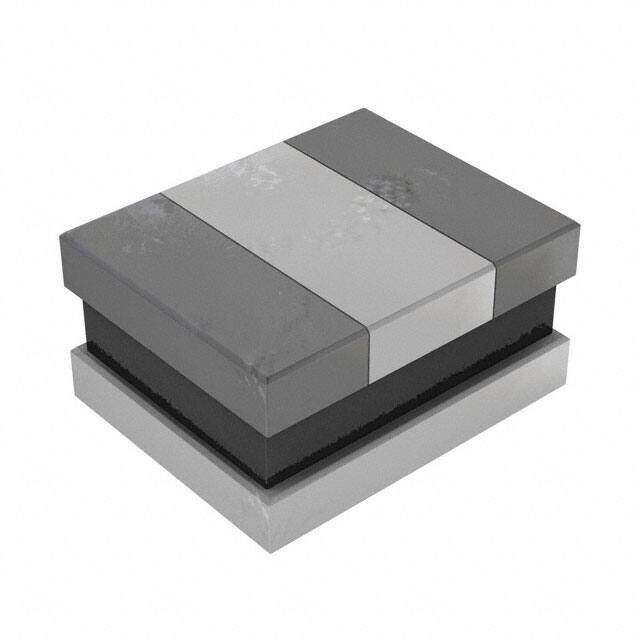

SRN2010-R68M image
Favorite
SRN2010-R68M image
Favorite

SRN2010-R68M

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description SRN2010 Nonstandard 0.079Lx0.063W 2.00mmx1.60mm 680nH
PDF
/
Inventory: 5800
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Height Seated (Max) 0.040 1.02mm
Height 1.02mm

Technical

RMS Current (Irms) 2.8A
Inductance Tolerance 20%
Case/Size Code 0806
Current - Saturation 3.2A
Quality Factor-Min (at L-nom) 10
Q @ Freq 10 @ 1MHz
Frequency - Self Resonant 200MHz
Max DC Current 2.8A
DC Resistance (DCR) 55mOhm Max
Test Frequency 1MHz
Inductance 680nH
Current Rating 2.8A
Construction Rectangular
Depth 1.6mm
Shielding Semi-Shielded
Packing Method TR, 7 Inch
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.079Lx0.063W 2.00mmx1.60mm
Series SRN2010
Published 2014
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C

Physical

Material - Core Ferrite
Weight 19.986414mg
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
