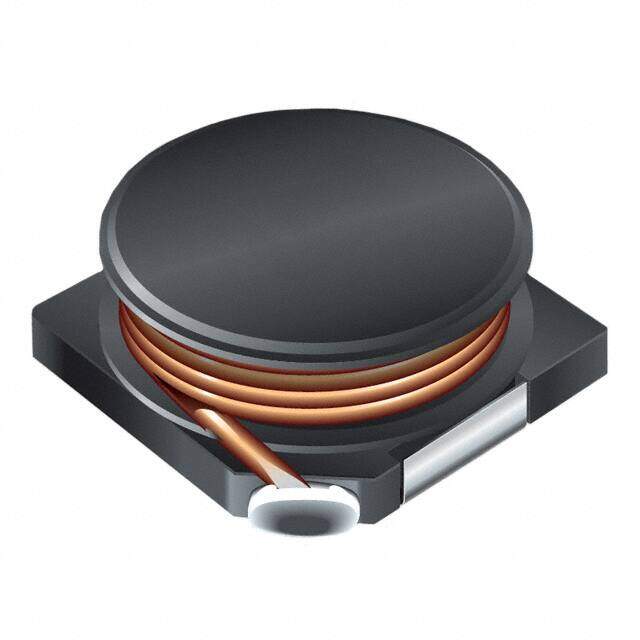

SDR7030-4R7M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SDR7030 Nonstandard 0.276Lx0.276W 7.00mmx7.00mm 4.7muH
PDF
/
Buying Options
Total Price: USD $0.38
Unit Price: USD $0.376487
≥1 USD $0.376487
≥200 USD $0.145705
≥500 USD $0.140586
≥1500 USD $0.138051
Inventory: 1157
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2011
Series SDR7030
Size / Dimension 0.276Lx0.276W 7.00mmx7.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Packing Method TR
Shielding NO
Number of Functions 1
Depth 7.3mm
Current Rating 1.85A
Military Standard Not
Inductance 4.7μH
Test Frequency 100kHz
DC Resistance (DCR) 48mOhm Max
Max DC Current 1.85A
Frequency - Self Resonant 43MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 14 @ 7.96MHz
Quality Factor-Min (at L-nom) 14
Current - Saturation 2.25A
Q Factor 14
Case/Size Code 2828
DC Current 1.85A
Dimensions
Height 3mm
Height Seated (Max) 0.130 3.30mm
Compliance
RoHS Status ROHS3 Compliant
