SDR2207-680KL
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description

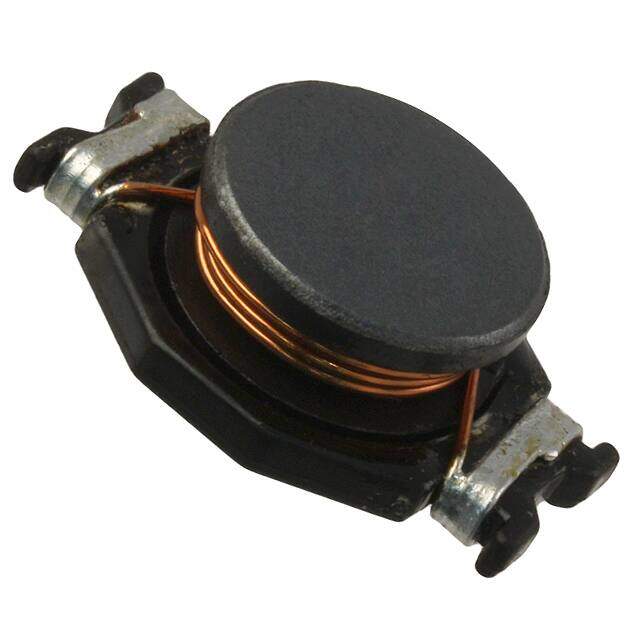

SDR2207 Nonstandard 0.866Lx0.591W 22.00mmx15.00mm 68muH
PDF
/
Buying Options
Total Price: USD $1.23
Unit Price: USD $1.232
≥1 USD $1.232
≥10 USD $1.04192
≥100 USD $0.947584
≥500 USD $0.89056
≥1000 USD $0.739024
Inventory: 768
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height Seated (Max) 0.307 7.80mm
Height 7mm
Technical
RMS Current (Irms) 2.4A
DC Current 2.4A
Inductance Tolerance 10%
Coil Resistance 112mOhm
Case/Size Code 8759
Q Factor 18
Current - Saturation 4A
Quality Factor-Min (at L-nom) 18
Q @ Freq 18 @ 2MHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 7.9MHz
Max DC Current 2.4A
DC Resistance (DCR) 112mOhm Max
Test Frequency 100kHz
Inductance 68μH
Military Standard Not
Current Rating 2.4A
Depth 15.3mm
Number of Functions 1
Shielding NO
Packing Method TR
HTS Code 8504.50.80.00
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Resistance 112MOhm
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Tolerance ±10%
Size / Dimension 0.866Lx0.591W 22.00mmx15.00mm
Series SDR2207
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Number of Pins 2
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
