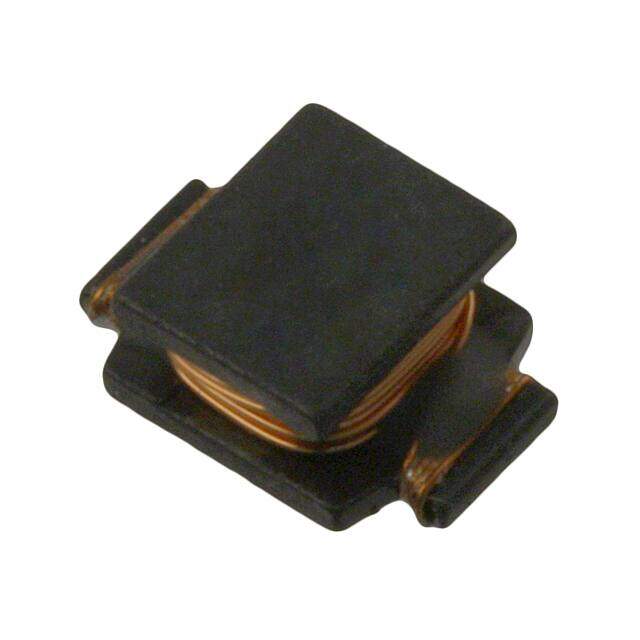

SDR0703-101KL

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description SDR0703 Nonstandard 0.256Lx0.177W 6.50mmx4.50mm 100muH
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.616
≥1 USD $0.616
≥10 USD $0.52624
≥100 USD $0.482592
≥500 USD $0.438592
≥1000 USD $0.390368
≥3000 USD $0.368438
Inventory: 634
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Number of Pins 2
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2006
Series SDR0703
Size / Dimension 0.256Lx0.177W 6.50mmx4.50mm
Tolerance ±10%
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin/Silver (Sn/Ag)
HTS Code 8504.50.80.00
Packing Method TR
Shielding NO
Number of Functions 1
Depth 4.7mm
Current Rating 270mA
Military Standard Not
Inductance 100μH
Test Frequency 100kHz
DC Resistance (DCR) 1.56Ohm Max
Max DC Current 270mA
Frequency - Self Resonant 11MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 33 @ 796kHz
Quality Factor-Min (at L-nom) 33
Current - Saturation 400mA
Q Factor 33
Inductance Tolerance 10%
DC Current 270mA
RMS Current (Irms) 270mA
Special Feature Q MEASURED AT 0.796 MHZ

Dimensions

Height 2.7mm
Height Seated (Max) 0.106 2.70mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
