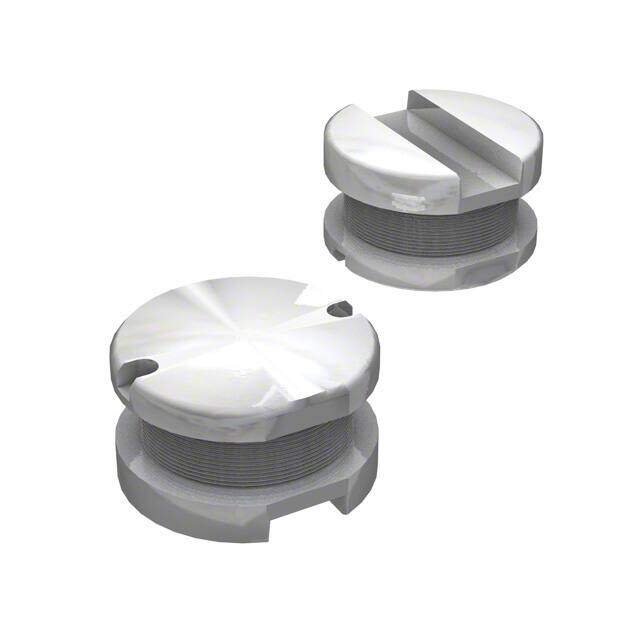

SDR0503-100M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SDR0503 Nonstandard 0.197Lx0.189W 5.00mmx4.80mm 10muH
PDF
/
Buying Options
Total Price: USD $0.27
Unit Price: USD $0.26505
≥1 USD $0.26505
≥10 USD $0.21755
≥100 USD $0.2109
≥500 USD $0.20425
≥1000 USD $0.19665
Inventory: 39008
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2005
Series SDR0503
Size / Dimension 0.197Lx0.189W 5.00mmx4.80mm
Tolerance ±20%
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
HTS Code 8504.50.80.00
Packing Method TR
Shielding NO
Number of Functions 1
Construction Low Profile
Current Rating 1.3A
Inductance 10μH
Test Frequency 1kHz
DC Resistance (DCR) 130mOhm Max
Max DC Current 1.3A
Frequency - Self Resonant 30MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 10 @ 2.52MHz
Quality Factor-Min (at L-nom) 10
Current - Saturation 1.6A
Case/Size Code 2019
Dimensions
Diameter 4.8mm
Height 3mm
Height Seated (Max) 0.130 3.30mm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
