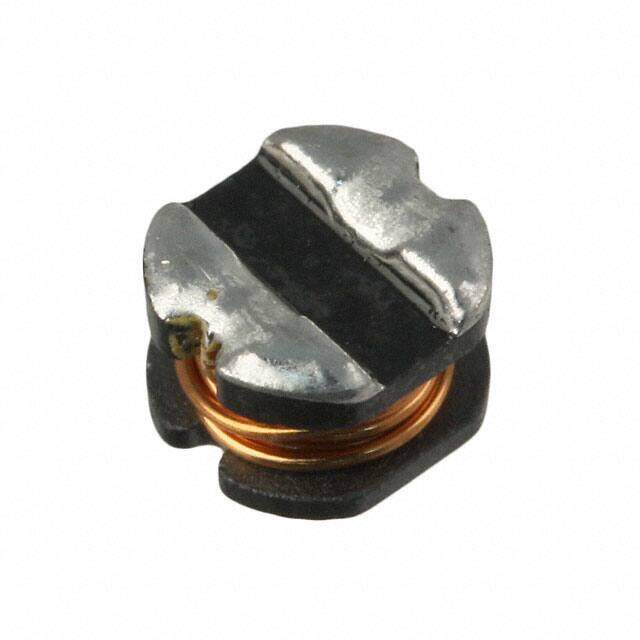

SDR0403-180ML image
Favorite
SDR0403-180ML image
Favorite

SDR0403-180ML

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description SDR0403 Nonstandard 0.177Lx0.157W 4.50mmx4.00mm 18muH
PDF
/
Buying Options
Total Price: USD $0.48
Unit Price: USD $0.4752
≥1 USD $0.4752
≥10 USD $0.40832
≥100 USD $0.373824
≥500 USD $0.340032
≥1000 USD $0.302544
≥3000 USD $0.285578
Inventory: 12349
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Material - Core Ferrite
Shape/Size Description CYLINDRICAL PACKAGE

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2006
Series SDR0403
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Tolerance ±20%
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Resistance 340MOhm
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
HTS Code 8504.50.80.00
Packing Method TR, Embossed Plastic, 13 Inch
Shielding NO
Number of Functions 1
Depth 4.3mm
Current Rating 840mA
Military Standard Not
Inductance 18μH
Test Frequency 1kHz
DC Resistance (DCR) 340mOhm Max
Max DC Current 840mA
Frequency - Self Resonant 23MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 25 @ 2.52MHz
Quality Factor-Min (at L-nom) 25
Current - Saturation 1.3A
Q Factor 25
Case/Size Code 1816
Inductance Tolerance 20%
DC Current 840mA
RMS Current (Irms) 840mA

Dimensions

Height 3.5mm
Height Seated (Max) 0.138 3.50mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
