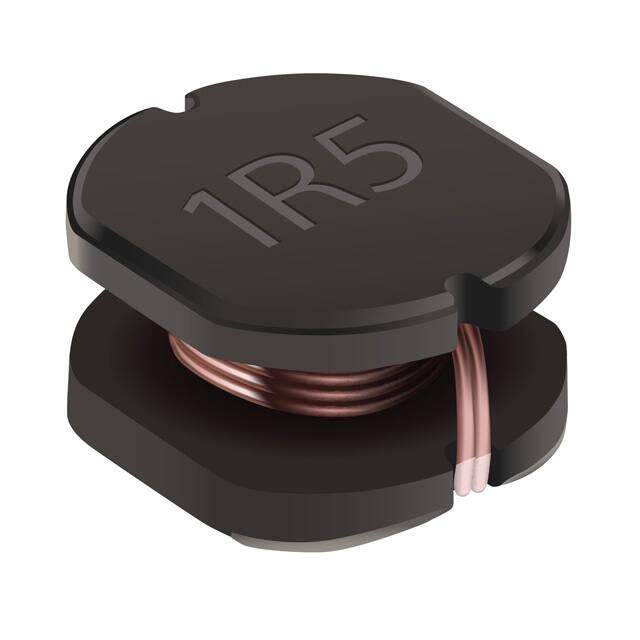

SDE1006A-270M image
Favorite
SDE1006A-270M image
Favorite

SDE1006A-270M

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description SDE1006A Nonstandard 0.394Lx0.354W 10.00mmx9.00mm 27muH
PDF
/
Inventory: 1563
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Terminal Finish Silver/Nickel/Tin (Ag/Ni/Sn)
HTS Code 8504.50.80.00
Packing Method TR, Embossed , 13 Inch
Shielding NO
Number of Functions 1
Depth 9.4mm
Construction Rectangular
Current Rating 2.3A
Military Standard Not
Inductance 27μH
Test Frequency 1MHz
DC Resistance (DCR) 110mOhm Max
Max DC Current 2.3A
Frequency - Self Resonant 13.3MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Current - Saturation 2.5A
Case/Size Code 4035
Inductance Tolerance 20%
RMS Current (Irms) 2.3A
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e2
Tolerance ±20%
Size / Dimension 0.394Lx0.354W 10.00mmx9.00mm
Series SDE1006A
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Dimensions

Height 5.4mm
Height Seated (Max) 0.228 5.80mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings AEC-Q200

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
