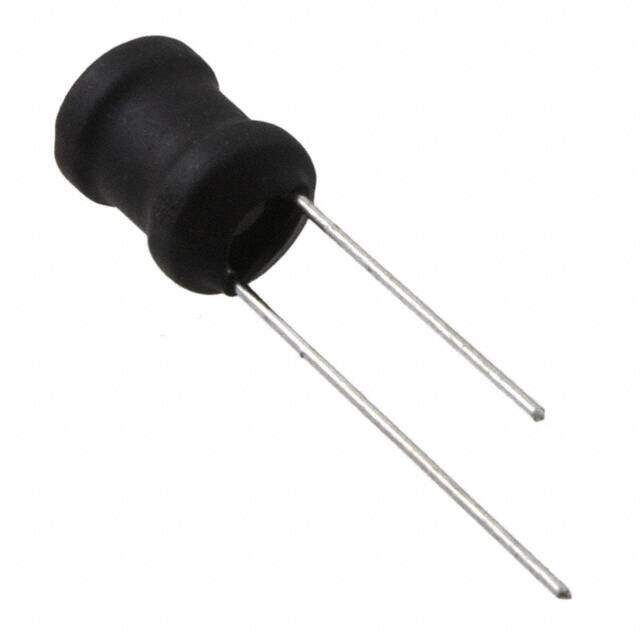

RLB9012-3R3ML
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RLB9012 Radial Vertical Cylinder 0.354Dia 9.00mm 3.3muH
PDF
/
Buying Options
Total Price: USD $0.63
Unit Price: USD $0.6336
≥1 USD $0.6336
≥10 USD $0.54648
≥100 USD $0.500896
≥500 USD $0.45518
≥1000 USD $0.405196
≥3000 USD $0.382448
Inventory: 990
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Plating Copper, Silver, Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Material - Core Ferrite
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2005
Series RLB9012
Size / Dimension 0.354Dia 9.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.40.00
Shielding NO
Number of Functions 1
Construction Cylindrical
Current Rating 5.5A
Military Standard Not
Lead Pitch 5mm
Inductance 3.3μH
Test Frequency 1kHz
DC Resistance (DCR) 25mOhm Max
Max DC Current 5.5A
Frequency - Self Resonant 65MHz
Inductor Application DC-DC CONVERTER
Q @ Freq 20 @ 7.96MHz
Lead/Base Style Radial
Quality Factor-Min (at L-nom) 20
DC Current 5.5A
Special Feature Q MEASURED AT 7.9 MHZ
Dimensions
Diameter 9mm
Height 12.2mm
Height Seated (Max) 0.480 12.20mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
