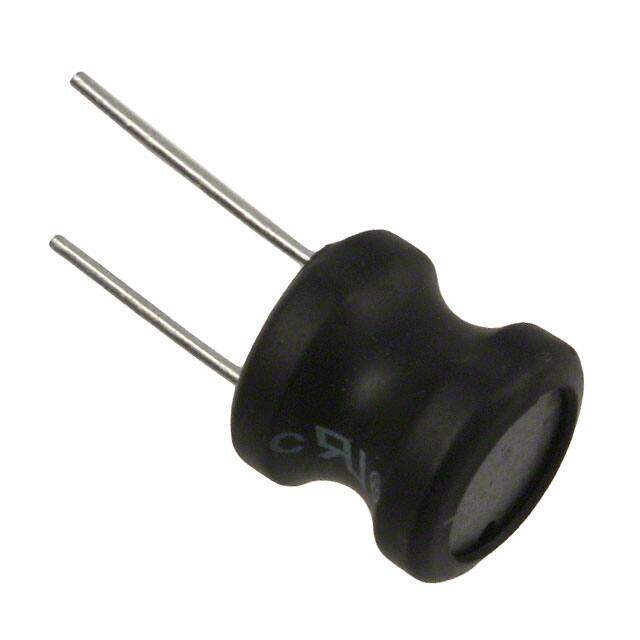

RLB1314-150ML image
Favorite
RLB1314-150ML image
Favorite

RLB1314-150ML

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description RLB Radial Vertical Cylinder 0.461Dia 11.70mm 15muH
PDF
/
Buying Options
Total Price: USD $0.42
Unit Price: USD $0.415455
≥1 USD $0.415455
≥10 USD $0.391937
≥100 USD $0.369757
≥500 USD $0.348827
≥1000 USD $0.329087
Inventory: 1234
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Number of Pins 2
Material - Core Ferrite

Technical

Operating Temperature -40°C~105°C
Packaging Bulk
Published 2005
Series RLB
Size / Dimension 0.461Dia 11.70mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 2.6A
Shielding Unshielded
Current Rating 2.6A
Base Part Number RLB1314
Military Standard Not
Lead Pitch 9mm
Lead Diameter 650 μm
Inductance 15μH
Test Frequency 1kHz
DC Resistance (DCR) 19mOhm Max
Max DC Current 2.6A
Frequency - Self Resonant 19MHz
Q @ Freq 120 @ 2.52MHz
Lead/Base Style Radial
Inductance Frequency - Test 1kHz
Q Factor 120
Inductance Tolerance 20%
DC Current 2.6A
Saturation Current 2.6A

Dimensions

Diameter 11.7mm
Height 13mm
Height Seated (Max) 0.512 13.00mm
Length 12mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
