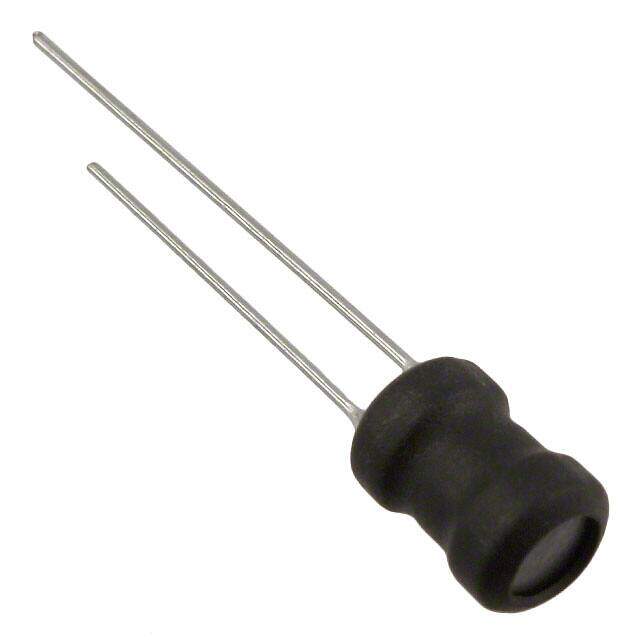

RLB0812-331KL image
Favorite
RLB0812-331KL image
Favorite

RLB0812-331KL

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description RLB Radial Vertical Cylinder 0.264Dia 6.70mm 330muH
PDF
/
Buying Options
Total Price: USD $0.25
Unit Price: USD $0.2464
≥1 USD $0.2464
≥10 USD $0.2024
≥100 USD $0.18656
≥500 USD $0.171072
≥1000 USD $0.15092
≥3000 USD $0.146238
Inventory: 1175
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Material - Core Ferrite
Shape/Size Description CYLINDRICAL PACKAGE

Technical

Operating Temperature -40°C~105°C
Packaging Bulk
Published 2005
Series RLB
Size / Dimension 0.264Dia 6.70mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Terminal Finish Matte Tin (Sn)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Construction Shrink Tube
Current Rating 200mA
Base Part Number RLB0812
Military Standard Not
Lead Pitch 3mm
Lead Length 25mm
Lead Diameter 650 μm
Inductance 330μH
Test Frequency 796kHz
DC Resistance (DCR) 1.6Ohm Max
Max DC Current 200mA
Frequency - Self Resonant 2.5MHz
Inductor Application POWER INDUCTOR
Q @ Freq 45 @ 796kHz
Lead/Base Style Radial
Quality Factor-Min (at L-nom) 45
DC Current 200mA

Dimensions

Diameter 6.7mm
Height 10.0076mm
Height Seated (Max) 0.433 11.00mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
