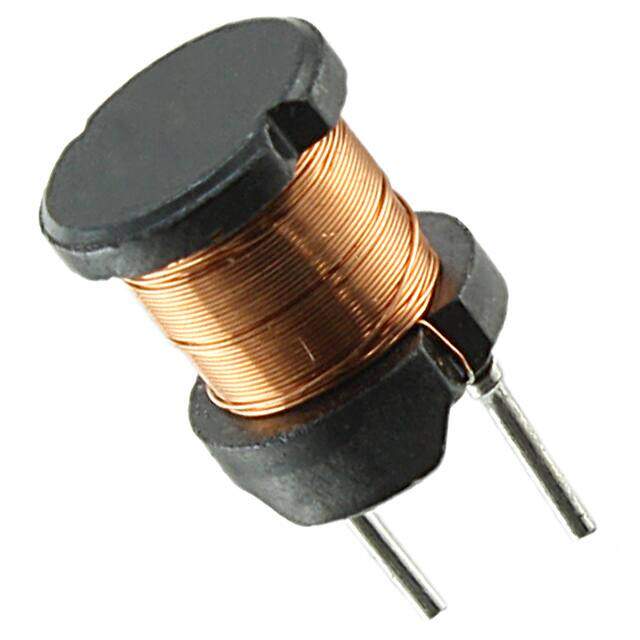

RL895-151K-RC image
Favorite
RL895-151K-RC image
Favorite

RL895-151K-RC

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description RL895 Radial Vertical Cylinder (Open) 0.307Dia 7.80mm 150muH
PDF
/
Inventory: 7961
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.374 9.50mm
Height 9.4996mm
Diameter 7.8mm

Technical

Special Feature Q IS MEASURED AT: 0.796 MHZ
Quality Factor-Min (at L-nom) 25
Q @ Freq 25 @ 796kHz
Inductor Application RF INDUCTOR
Frequency - Self Resonant 3.5MHz
Max DC Current 740mA
DC Resistance (DCR) 270mOhm Max
Test Frequency 1kHz
Inductance 150μH
Lead Pitch 5mm
Current Rating 740mA
Construction Cylindrical
Number of Functions 1
Shielding NO
Packing Method Tray
HTS Code 8504.50.80.00
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Wirewound
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Tolerance ±10%
Size / Dimension 0.307Dia 7.80mm
Series RL895
Published 2012
Packaging Bulk
Operating Temperature -30°C~100°C

Physical

Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Ferrite
Package / Case Radial, Vertical Cylinder (Open)
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 16 Weeks
