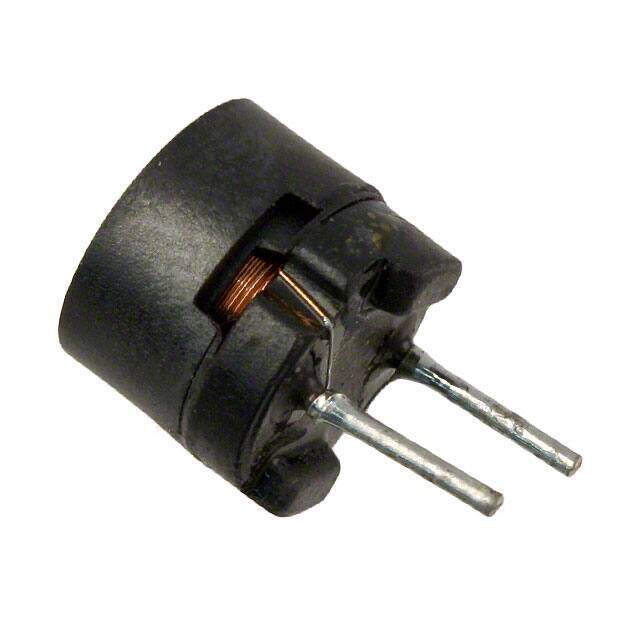

RL875S-121K-RC image
Favorite
RL875S-121K-RC image
Favorite

RL875S-121K-RC

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description RL875S Radial Vertical Cylinder 0.307Dia 7.80mm 120muH
PDF
/
Inventory: 8646
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.295 7.50mm
Height 7.5mm
Diameter 7.8mm

Technical

Inductance Frequency - Test 1kHz
Q @ Freq 45 @ 796kHz
Inductor Application DC-DC CONVERTER
Frequency - Self Resonant 6MHz
Max DC Current 670mA
DC Resistance (DCR) 360mOhm Max
Test Frequency 1kHz
Inductance 120μH
Lead Pitch 5mm
Current Rating 670mA
Construction Cylindrical
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±10%
Size / Dimension 0.307Dia 7.80mm
Series RL875S
Published 2012
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Ferrite
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 16 Weeks
