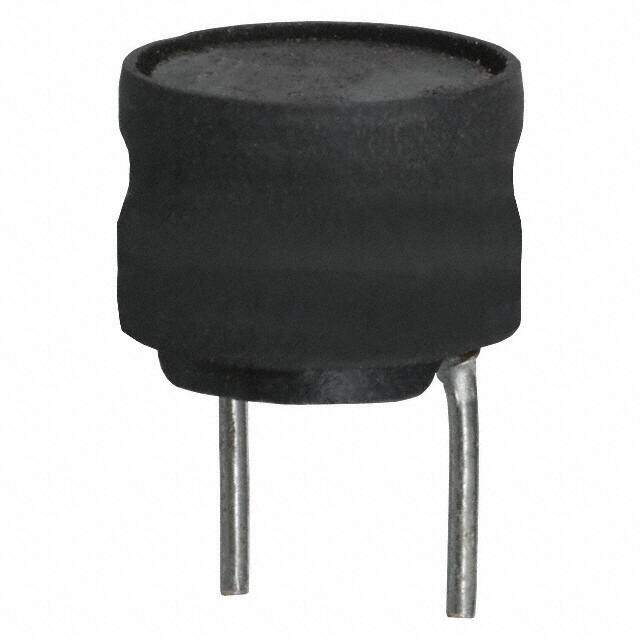

RL262-102J-RC image
Favorite
RL262-102J-RC image
Favorite

RL262-102J-RC

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description RL262 Radial Vertical Cylinder 0.315Dia 8.00mm 1mH
PDF
/
Inventory: 7598
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Material - Core Ferrite
Shape/Size Description CYLINDRICAL PACKAGE

Technical

Operating Temperature -55°C~105°C
Packaging Bulk
Published 2009
Series RL262
Size / Dimension 0.315Dia 8.00mm
Tolerance ±5%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Resistance 9Ohm
HTS Code 8504.50.80.00
Shielding Unshielded
Number of Functions 1
Construction Cylindrical
Current Rating 50mA
Military Standard Not
Lead Pitch 5mm
Lead Diameter 0.7 mm
Inductance 1mH
Test Frequency 252kHz
DC Resistance (DCR) 9Ohm Max
Max DC Current 50mA
Frequency - Self Resonant 2.1MHz
Inductor Application DC-DC CONVERTER
Q @ Freq 80 @ 252kHz
Lead/Base Style Radial
Quality Factor-Min (at L-nom) 80
DC Current 50mA

Dimensions

Height 6.1976mm
Height Seated (Max) 0.244 6.20mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free

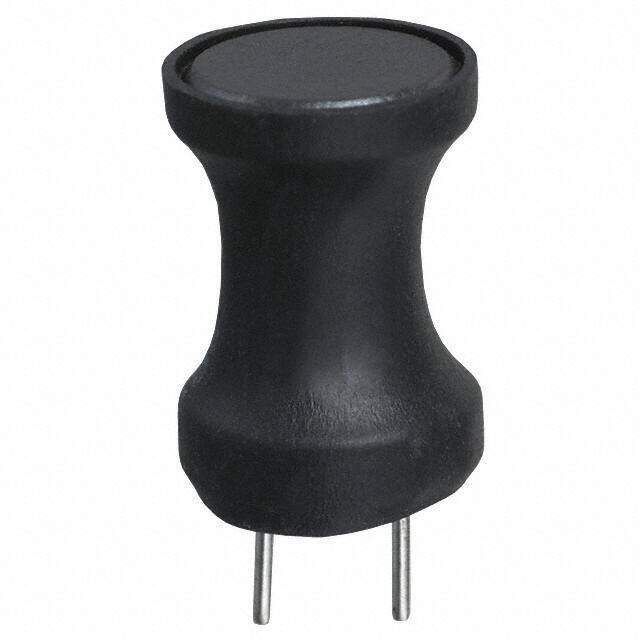

Alternative Model
