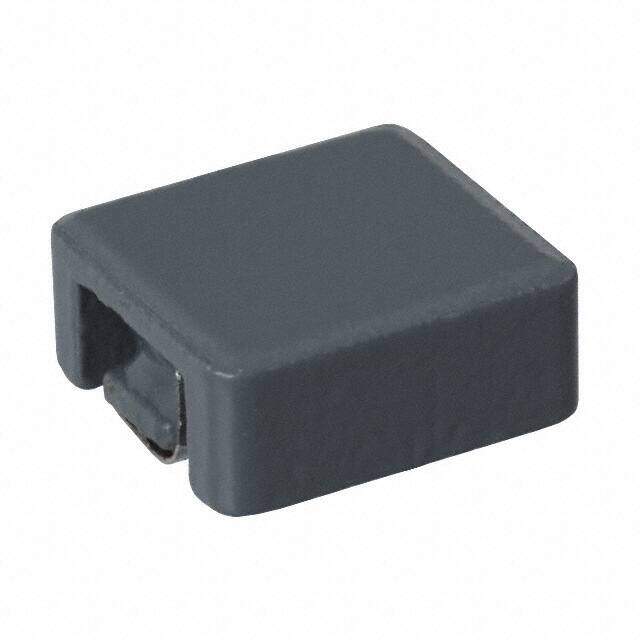

PM7232S-R22M
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PM7232S Nonstandard 0.307Lx0.276W 7.80mmx7.00mm 220nH
PDF
/
Inventory: 4762
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~150°C
Packaging Tape & Reel (TR)
Published 2002
Series PM7232S
Size / Dimension 0.307Lx0.276W 7.80mmx7.00mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding Shielded
Reach Compliance Code unknown
Current Rating 17A
Inductance 220nH
Test Frequency 100kHz
DC Resistance (DCR) 1.7mOhm Max
Max DC Current 17A
Dimensions
Height Seated (Max) 0.126 3.20mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
