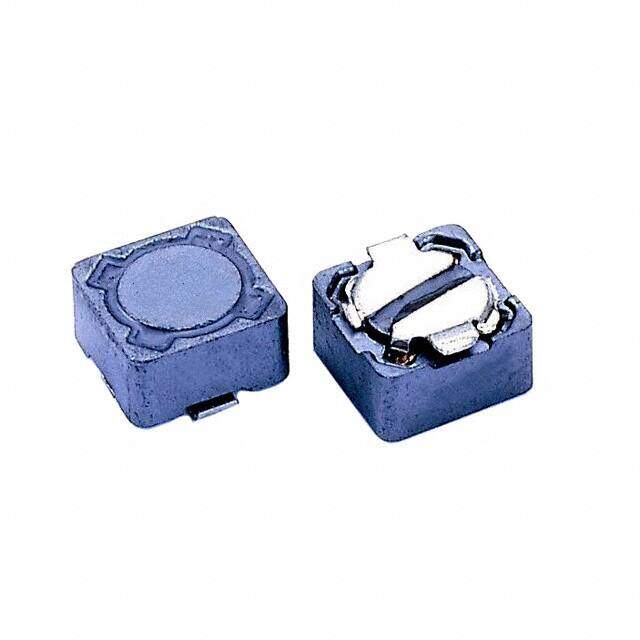

PM638S-270-RC image
Favorite
PM638S-270-RC image
Favorite

PM638S-270-RC

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description PM638S Nonstandard 0.268Lx0.268W 6.80mmx6.80mm 27muH
PDF
/
Inventory: 8452
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 16 Weeks

Physical

Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape ONE SURFACE
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2012
Series PM638S
Size / Dimension 0.268Lx0.268W 6.80mmx6.80mm
Tolerance ±30%
JESD-609 Code e2
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Silver/Nickel/Tin (Ag/Ni/Sn)
HTS Code 8504.50.80.00
Packing Method TR, Embossed, 7 Inch
Shielding YES
Number of Functions 1
Case/Size Code 2727
Current - Saturation 1.3A
Inductance Frequency - Test 100kHz
Quality Factor-Min (at L-nom) 7.7
Q @ Freq 7.7 @ 2.52MHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 12.5MHz
Max DC Current 1.2A
DC Resistance (DCR) 109mOhm Max
Test Frequency 0.1MHz
Inductance 27μH
Base Part Number PM638s
Construction Rectangular

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.157 4.00mm
Height 3.8mm
