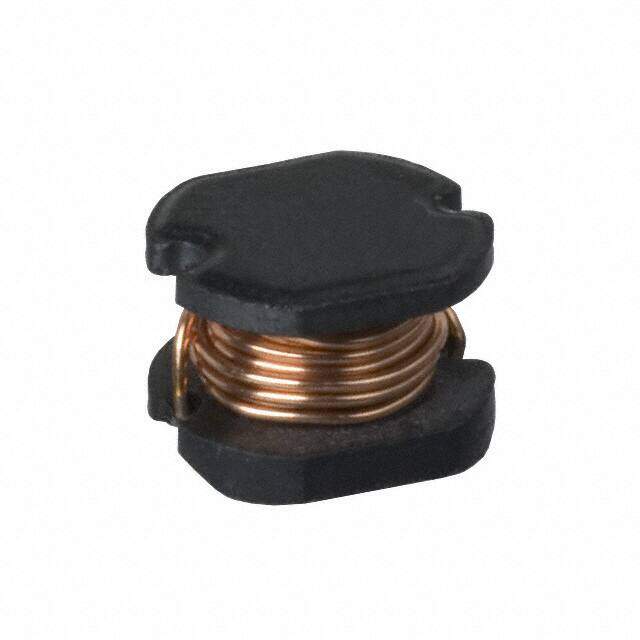

PM43-270M image
Favorite
PM43-270M image
Favorite

PM43-270M

Bourns Inc.
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description PM43 Nonstandard 0.177Lx0.157W 4.50mmx4.00mm 27muH
PDF
/
Inventory: 3936
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Number of Pins 2
Weight 26.988746mg
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~100°C
Packaging Tape & Reel (TR)
Published 2006
Series PM43
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Packing Method TR
Shielding NO
Number of Functions 1
Construction Bobbin Core
Reach Compliance Code unknown
Current Rating 620mA
Case Code (Metric) 4532
Case Code (Imperial) 1812
Inductance 27μH
Test Frequency 2.52MHz
DC Resistance (DCR) 522mOhm
Max DC Current 710mA
Frequency - Self Resonant 21MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Case/Size Code 1816

Dimensions

Diameter 4.5mm
Height 3.2mm
Height Seated (Max) 0.138 3.50mm

Compliance

RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
