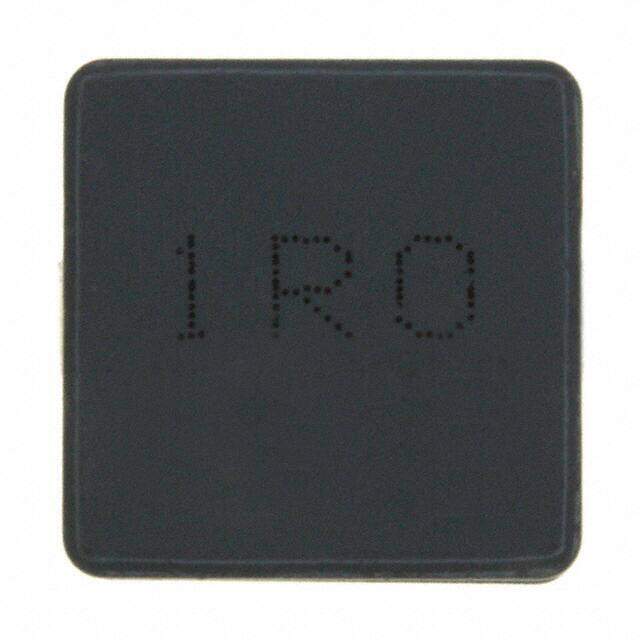

PM42S-220-RC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PM42S Nonstandard 0.189Lx0.189W 4.80mmx4.80mm 22muH
PDF
/
Inventory: 2015
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.118 3.00mm
Height 1.8mm
Technical
Case/Size Code 1919
Current - Saturation 650mA
Inductance Frequency - Test 100kHz
Quality Factor-Min (at L-nom) 7
Q @ Freq 7 @ 2.52MHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 29MHz
Max DC Current 880mA
DC Resistance (DCR) 300mOhm Max
Test Frequency 0.1MHz
Inductance 22μH
Current Rating 410mA
Number of Functions 1
Shielding YES
Packing Method TR
HTS Code 8504.50.80.00
Terminal Finish Silver/Nickel/Tin (Ag/Ni/Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Tolerance ±30%
Size / Dimension 0.189Lx0.189W 4.80mmx4.80mm
Series PM42S
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Number of Pins 2
Terminal Shape ONE SURFACE
Surface Mount YES
Package / Case Nonstandard
Mounting Type Surface Mount
